Spring pressure brake AC6
Product information "Spring pressure brake AC6"

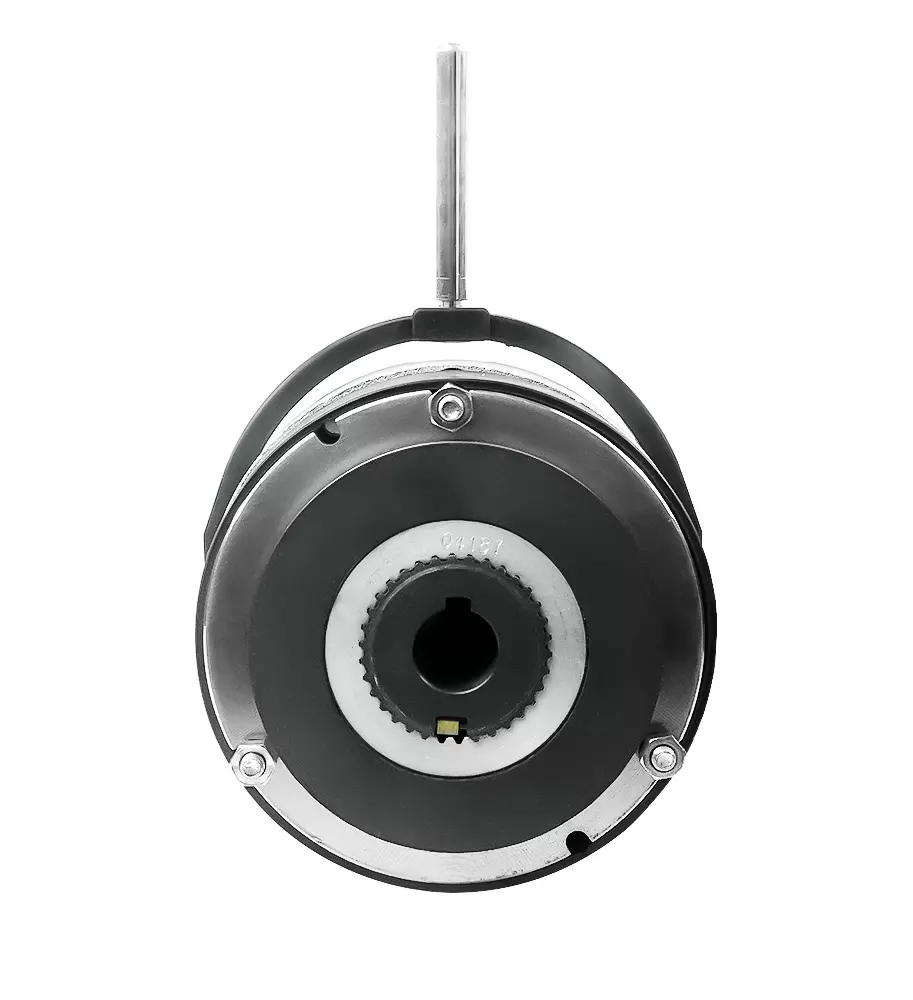

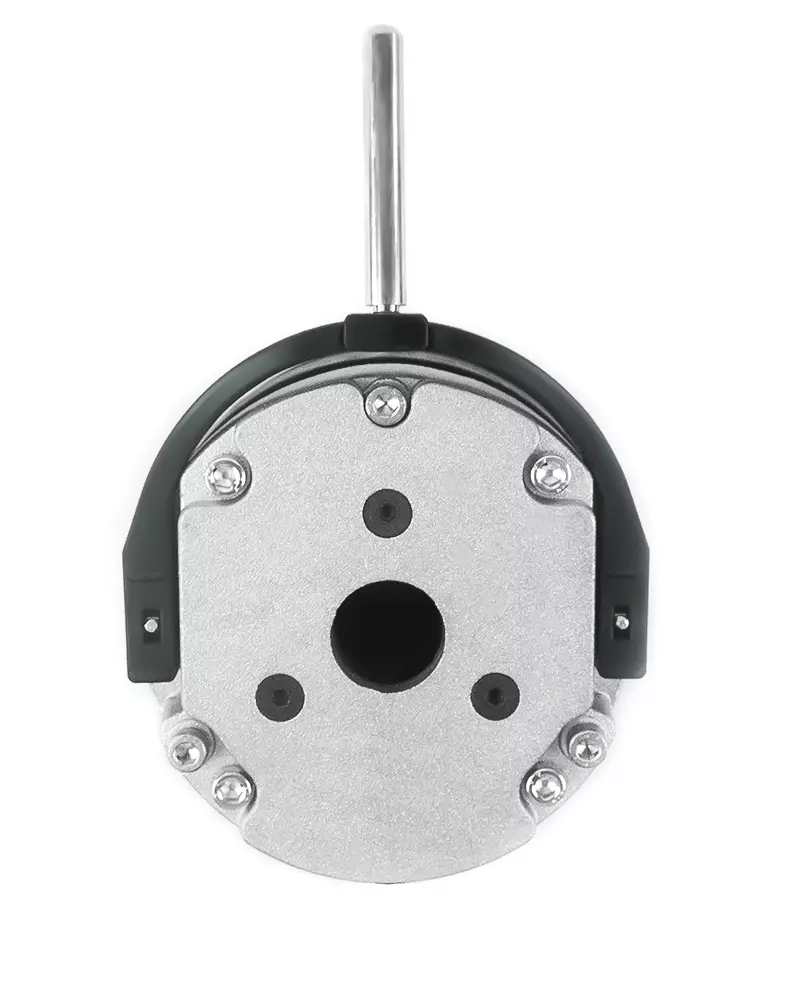

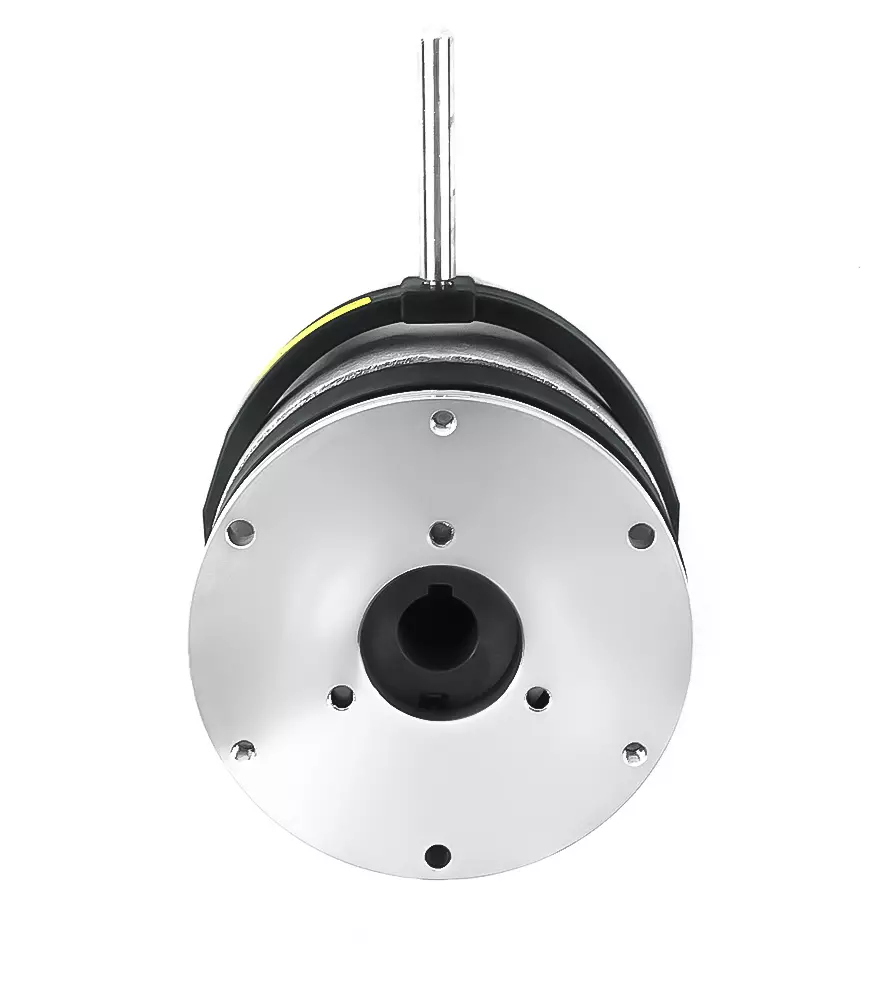

Spring-loaded brake for AC6 Electric motors with mounting flange
AC brake, 3x230/400V (no rectifier necessary)
Braking torque 60 Nm, max. power 380 watts, weight 7.5 kg,
max. engine speed 3600 rpm, volume approx. 70 dB,
The key features of the AC Series brake are:
- Very robust structure.
- Easy assembly of the brake unit.
- Quiet operation (< 70 dBA according to Directive 98/37/EEC).
- Good heat dissipation thanks to the die-cast aluminum structure and the Electric motor fan;
- The coil of the electromagnet is fully epoxy bonded unless otherwise noted.

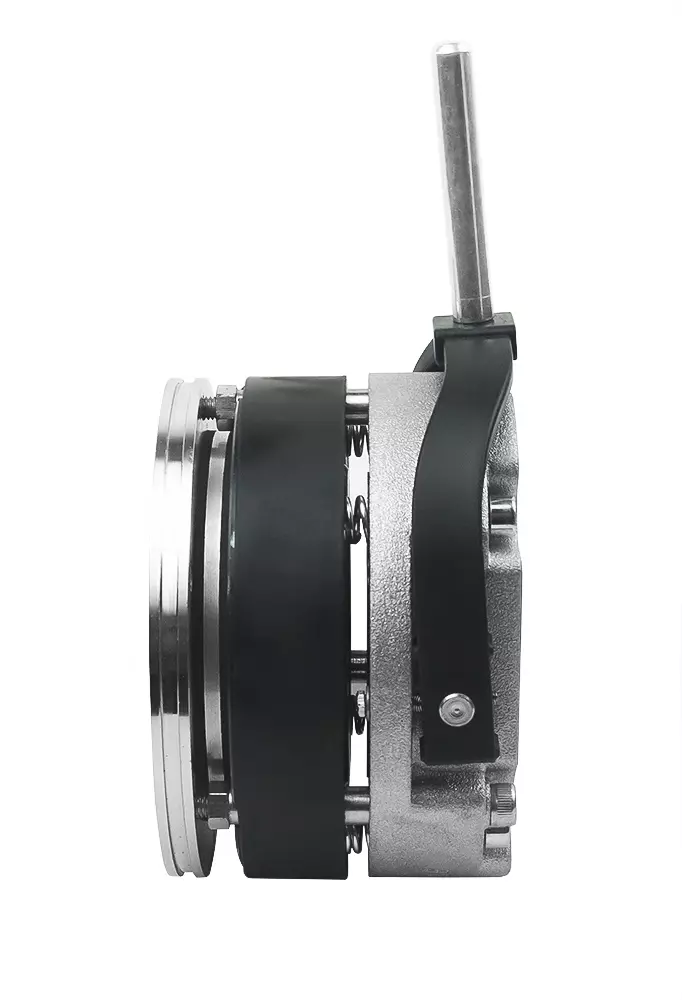

- A manual release lever is available upon request.
- cCSAus No. 70043342
Please select the hub diameter.
All product photos are non-binding examples! Technical changes reserved.
| Braking torque: | 60 Nm |
|---|---|
| Diameter hub: | 25 mm, 28 mm, 30 mm |
| Series: | Bremsen AC-Serie (Wechselstrom) |
| Tension: | 3 x 230/400 V |
| Braking torque: | 60 Nm |
|---|---|
| Diameter hub: | 25 mm, 28 mm, 30 mm |
| Series: | Bremsen AC-Serie (Wechselstrom) |
| Tension: | 3 x 230/400 V |
