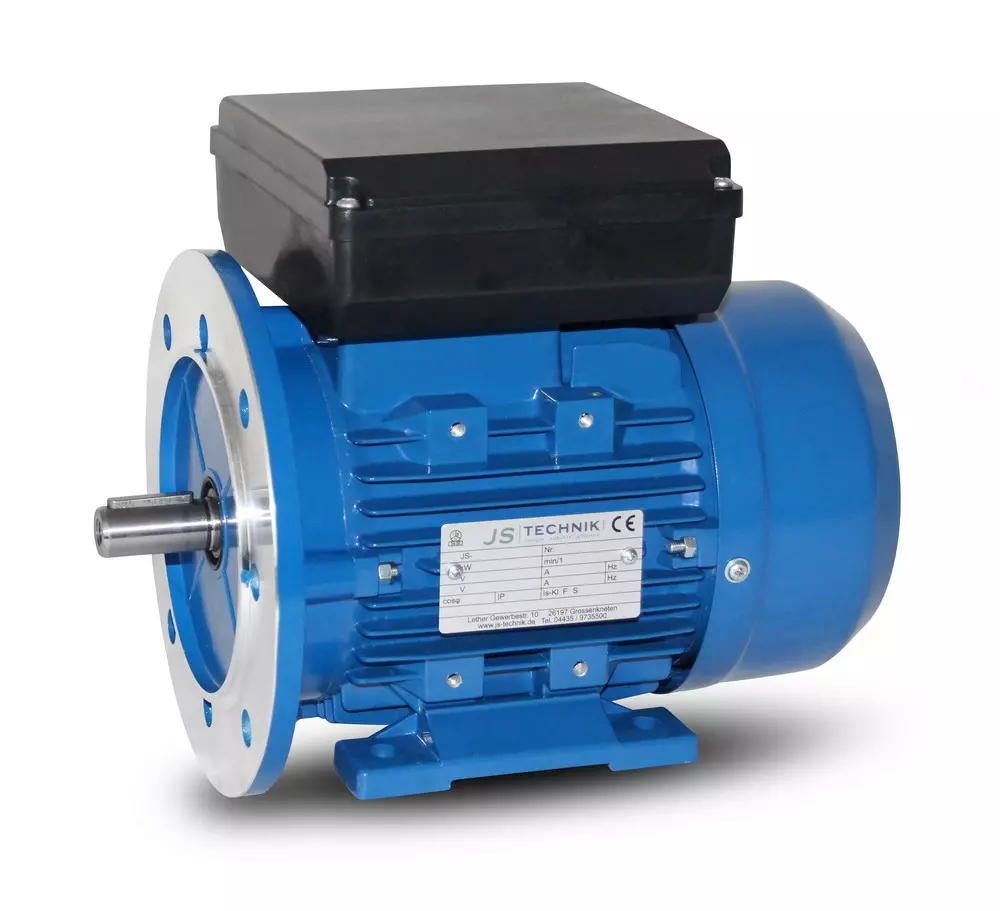

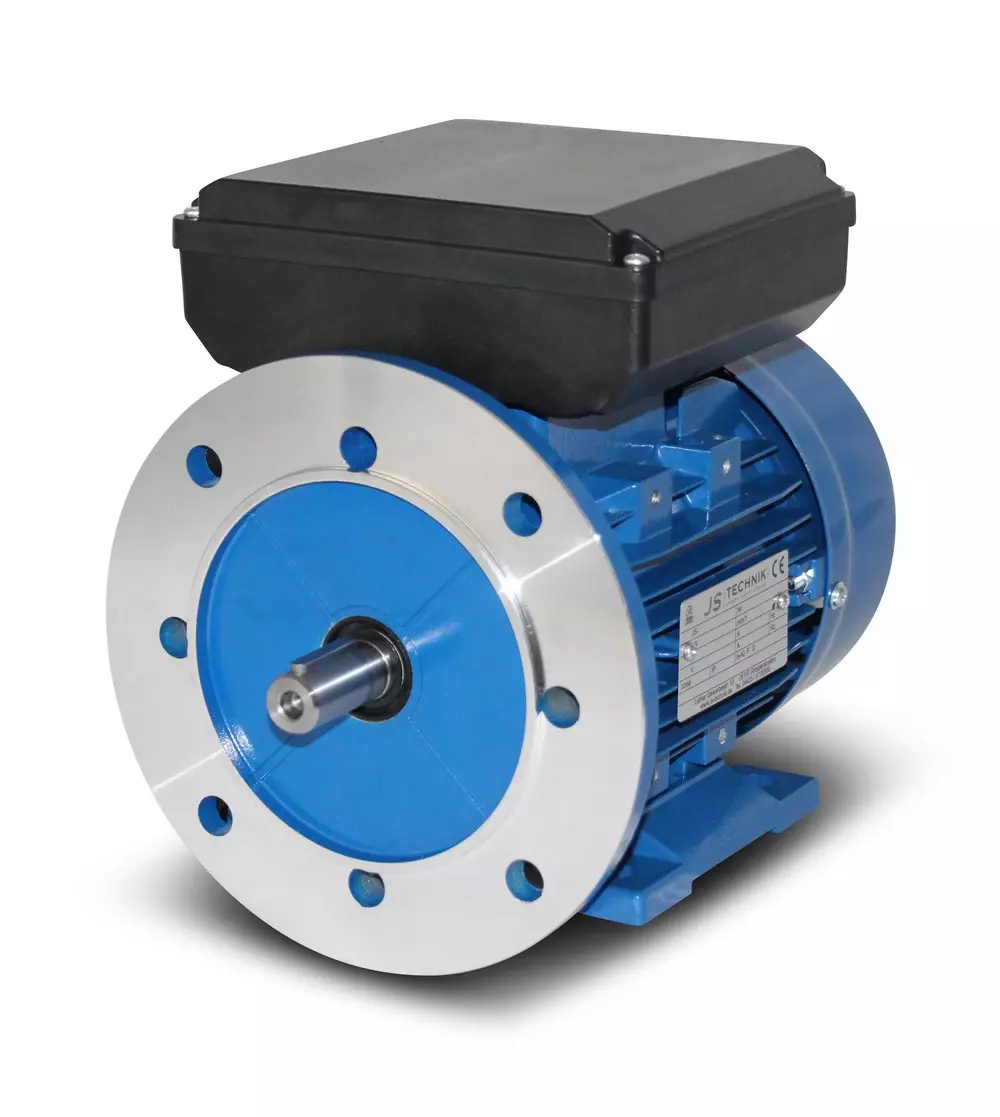

Single phase motor -ML 100L 3 kW 2pol-B35
Product information "Single phase motor -ML 100L 3 kW 2pol-B35"
Single phase motor with Operating and Starting capacitor
Power= 3 kW, Speed= 2 pole, Voltage= 1 x 230 V (± 5% according to VDE 0530),
Weight= approx 25 kg, Shaft = 28 x 60 mm, Frequency= 50 Hertz, Degree of protection= IP55, Operating mode= S1- 100% ED.

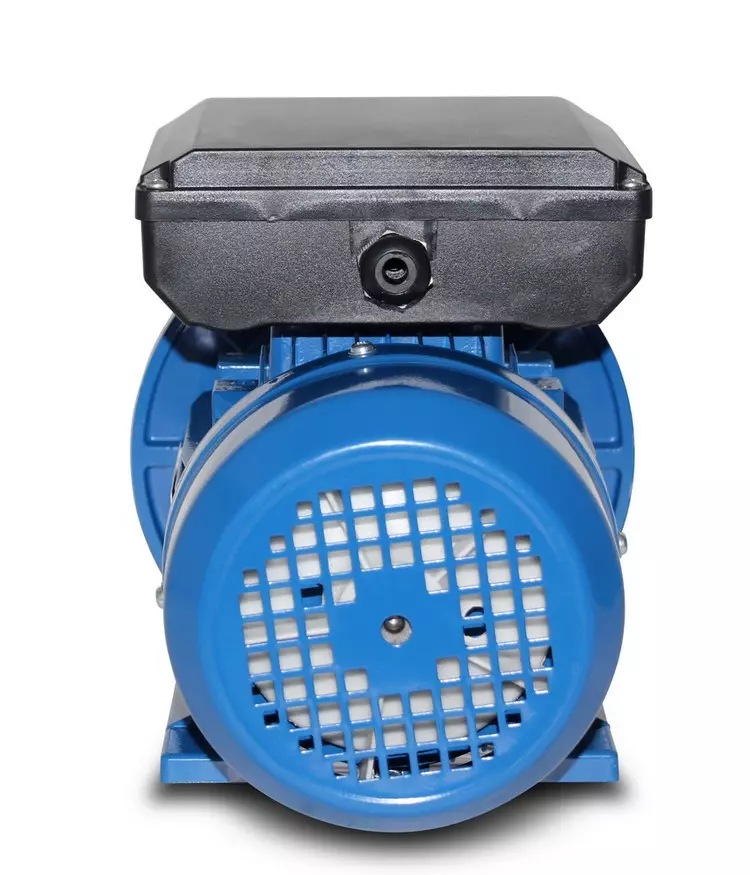

Paint= RAL 5010 (gentian blue), Temperature sensor= 1 x PTC- Thermistor. Cooling= axial fan,

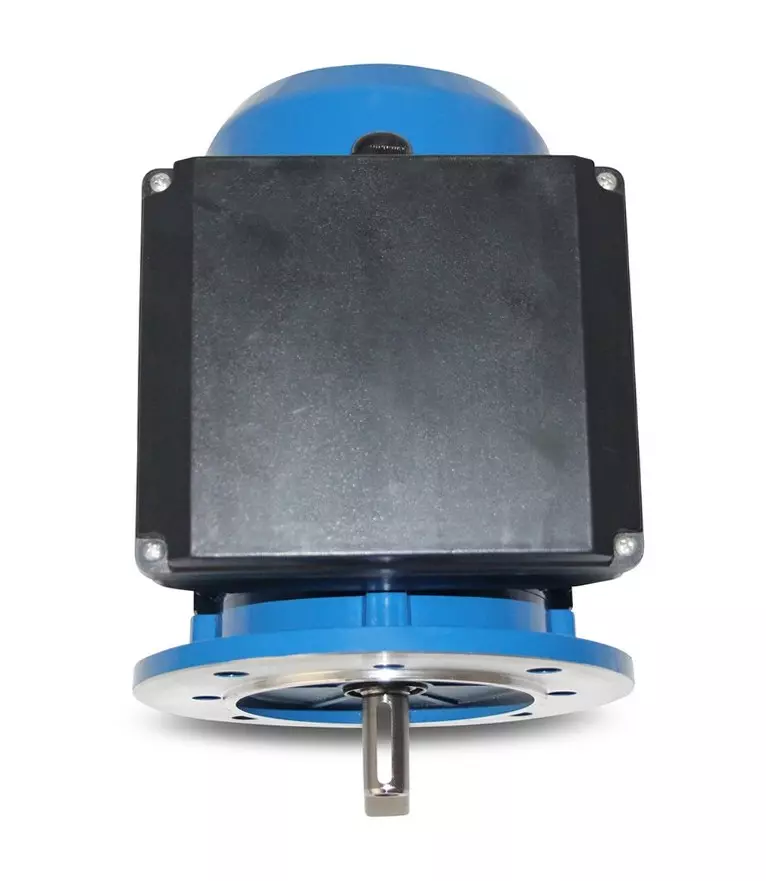

Insulation class = F (155 ° C), Terminal box position= top, Housing= die-cast aluminum,
Ball bearing= SKF, C & U, o. equivalent, Motor feet= screw-on resp. can be unscrewed.

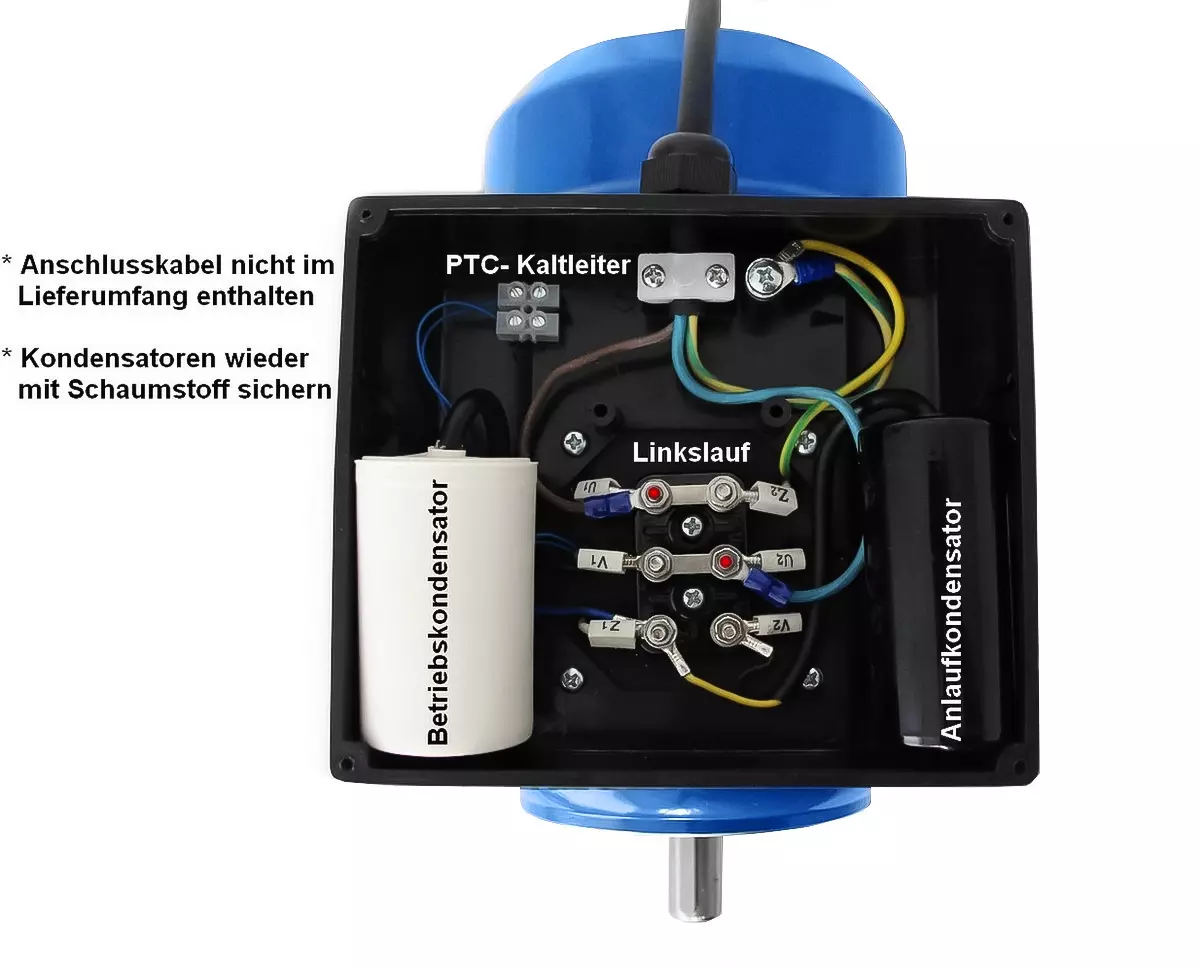

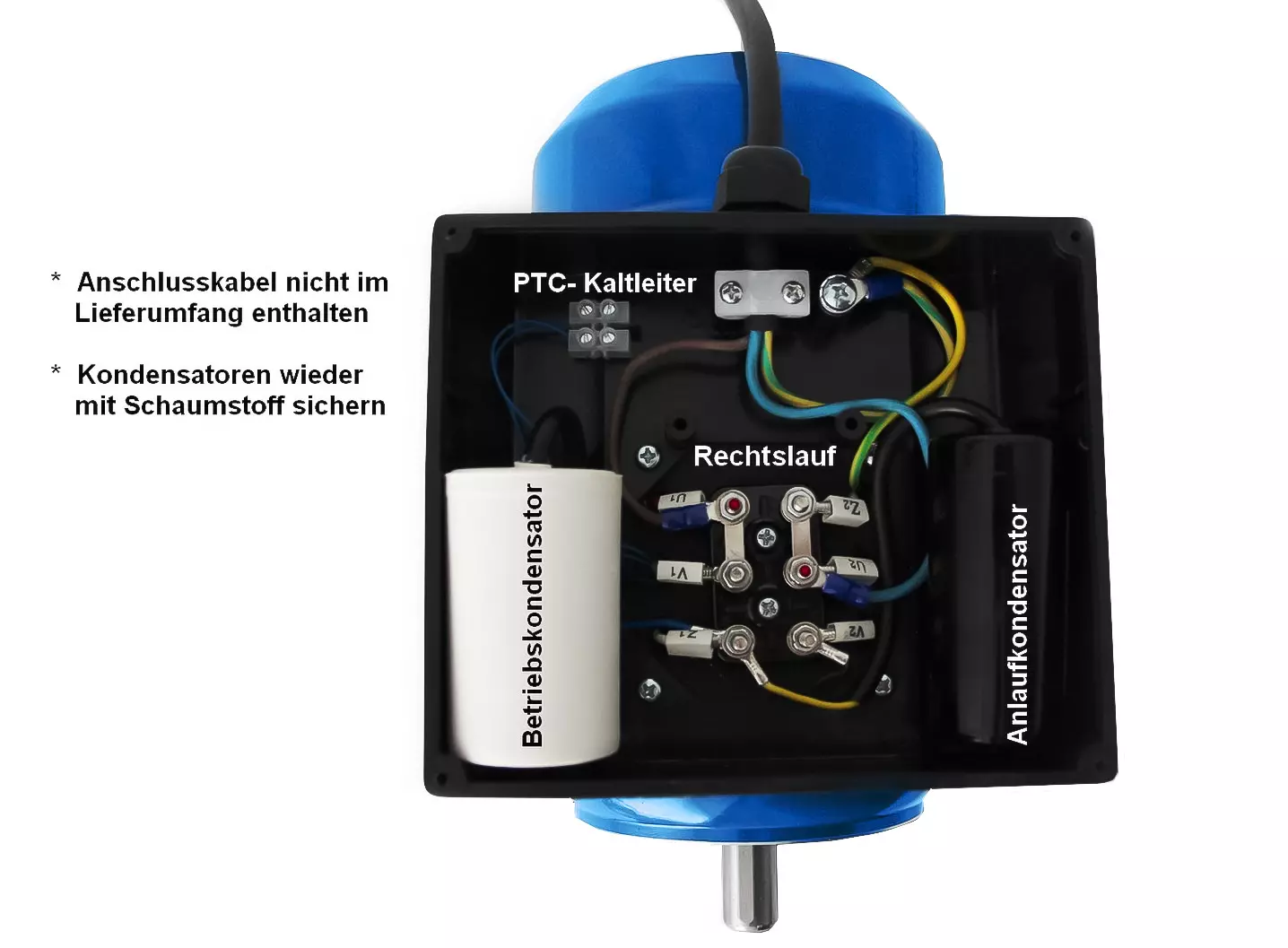

Single phase motors are suitable for both directions of rotation.
Generally:
Owned by the starting and operating capacitor the 230V motor has a stronger starting torque.
The starting capacitor is switched off when the Speed is reached by a centrifugal switch.
Speed control via frequency converters or the like therefore leads to faults and is not permitted.
All product photos are non-binding Examples !
| Efficiency Class: | IE 1 |
|---|---|
| Performance: | 3,0 kW |
| Rotation speed: | 3000 rpm / 2 polig |
| Shaft diameter: | 28 mm |
| Tension: | 1 x 230 V |
| Type of construction: | B3 B5 (B35) |
| Efficiency Class: | IE 1 |
|---|---|
| Performance: | 3,0 kW |
| Rotation speed: | 3000 rpm / 2 polig |
| Shaft diameter: | 28 mm |
| Tension: | 1 x 230 V |
| Type of construction: | B3 B5 (B35) |
