Modbus RTU interface card for EASYdrive
The MODBUS bus system belongs to the fieldbus family.
As a rule, the network is built up in a linear structure. The maximum data transfer rate on a MODBUS can be up to 115.2 kbit / s. The fieldbus cable is only connected via the M12 connector on the front or . If the fieldbus line is to be forwarded to another subscriber, an M12 T distributor must be used. The bus must be terminated with a terminating resistor.
The interface card is part of the converter.
All product photos are non-binding examples! Technical changes reserved.

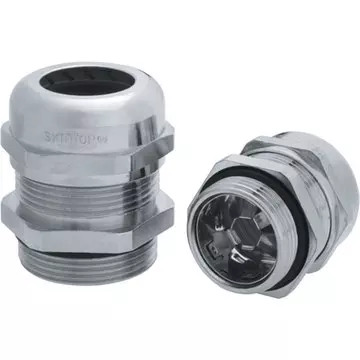

M25 cable gland brass, EMC-Z
- Suitable for shielded control cables up to 4 x 2.5 mm²
- for cables with a diameter of 7 mm to 13 mm
- Brass cable gland with low-resistance shield contact
- Highly conductive, flexible EMC contact spring
- Easy construction
M20 cable gland brass, EMC-Z
- Suitable for shielded control cables up to 4 x 2.5 mm²
- for cables with a diameter of 7 mm to 13 mm
- Brass cable gland with low-resistance shield contact
- Highly conductive, flexible EMC contact spring
- Easy construction
M32 cable gland brass, EMC-Z
- Suitable for shielded control cables up to 4 x 2.5 mm²
- for cables with a diameter of 7 mm to 13 mm
- Brass cable gland with low-resistance shield contact
- Highly conductive, flexible EMC contact spring
- Easy construction
The potentiometer integrated on the side enables a comfortable setpoint specification. The interface
for the connection is available as standard. The potentiometer is available as an accessory.
-The potentiometer is part of the converter and cannot be retrofitted.-
All product photos are non-binding examples!
Adapter plate EASYdrive Alpha Wall
Wall bracket for frequency converters from 0.25-0.75 kW,
For attaching EASYdrive frequency converters to a wall.
All product photos are non-binding examples! Technical changes reserved.
Adapter plate EASYdrive Alpha Motor
for frequency converters from 0.25-0.75 kW,
For attaching EASYdrive frequency converters to a motor.
All product photos are non-binding examples! Technical changes reserved.
Potentiometer, 0-10KΩ, suitable for control cabinet mounting.
This stepless rotary potentiometer can be used for the complete range of LS frequency inverters. The potentiometer can be connected via screw terminals, no soldering is required. Suitable for installation in the control cabinet.
M40 cable gland brass, EMC-Z
- Suitable for shielded control cables up to 4 x 2.5 mm²
- for cables with a diameter of 7 mm to 13 mm
- Brass cable gland with low-resistance shield contact
- Highly conductive, flexible EMC contact spring
- Easy construction
USB cable for M100 / G100. (RJ45 > USB)
Programming with DriveView7 operating software via RJ45 connection on the M100 / G100.
With M100 only the Advanced version! The standard M100 does not have an RJ45 interface!
M50 cable gland brass, EMC-Z
- Suitable for shielded control cables up to 4 x 2.5 mm²
- for cables with a diameter of 7 mm to 13 mm
- Brass cable gland with low-resistance shield contact
- Highly conductive, flexible EMC contact spring
- Easy construction
MCRA-200 braking resistor for 150 watts 600 ohms
Dimensions: L = 230mm W = 60mm H = 20mm
Braking torque: 150%
Temperature range: -55 ° C - 200 ° C
Voltage class: 400 volts
All product photos are non-binding examples!
MCRA-100 braking resistor for 100 watts 1200 Ohm
Dimensions: L = 150mm W = 35mm H = 19mm
Braking torque: 150%
Temperature range: -55 ° C - 200 ° C
Voltage class: 400 volts
All product photos are non-binding examples!

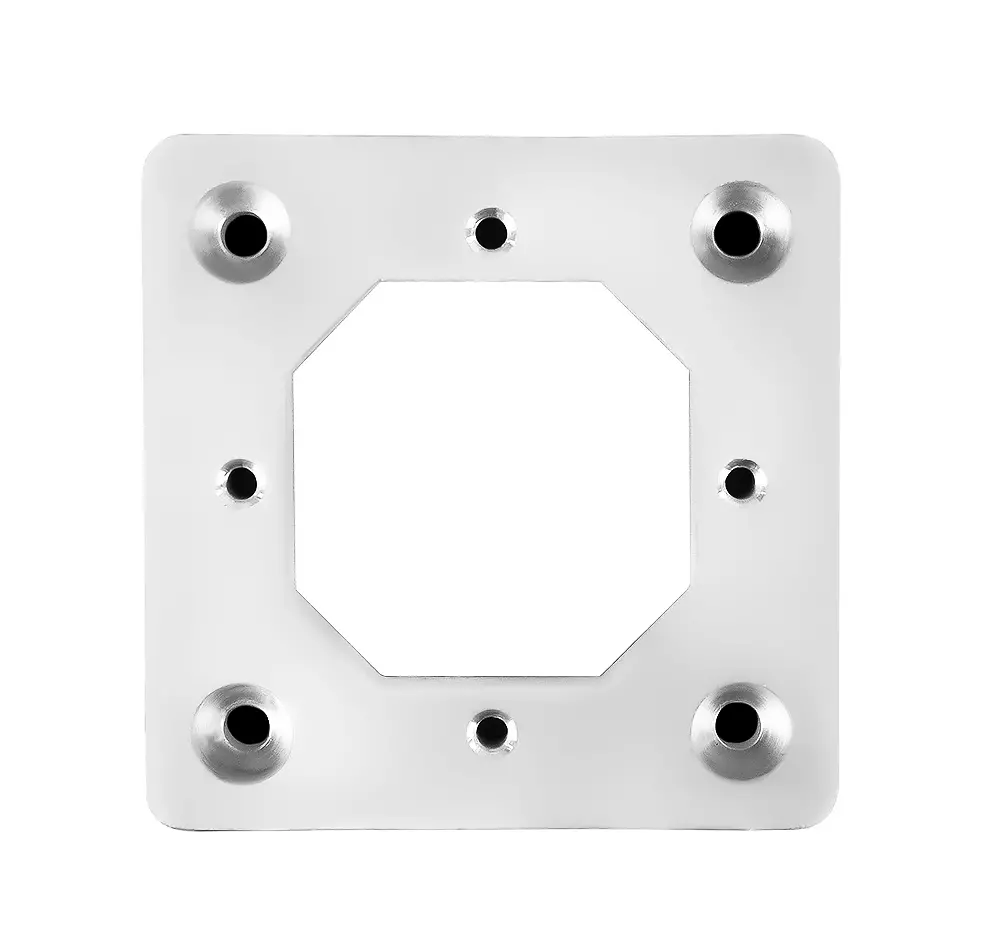

Adapter plate SMARTdrive J1-0306
Outside 90mm, motor mounting 64mm, converter mounting 64mm
For attaching SMARTdrive frequency converters to a motor.
All product photos are non-binding examples! Technical changes reserved.

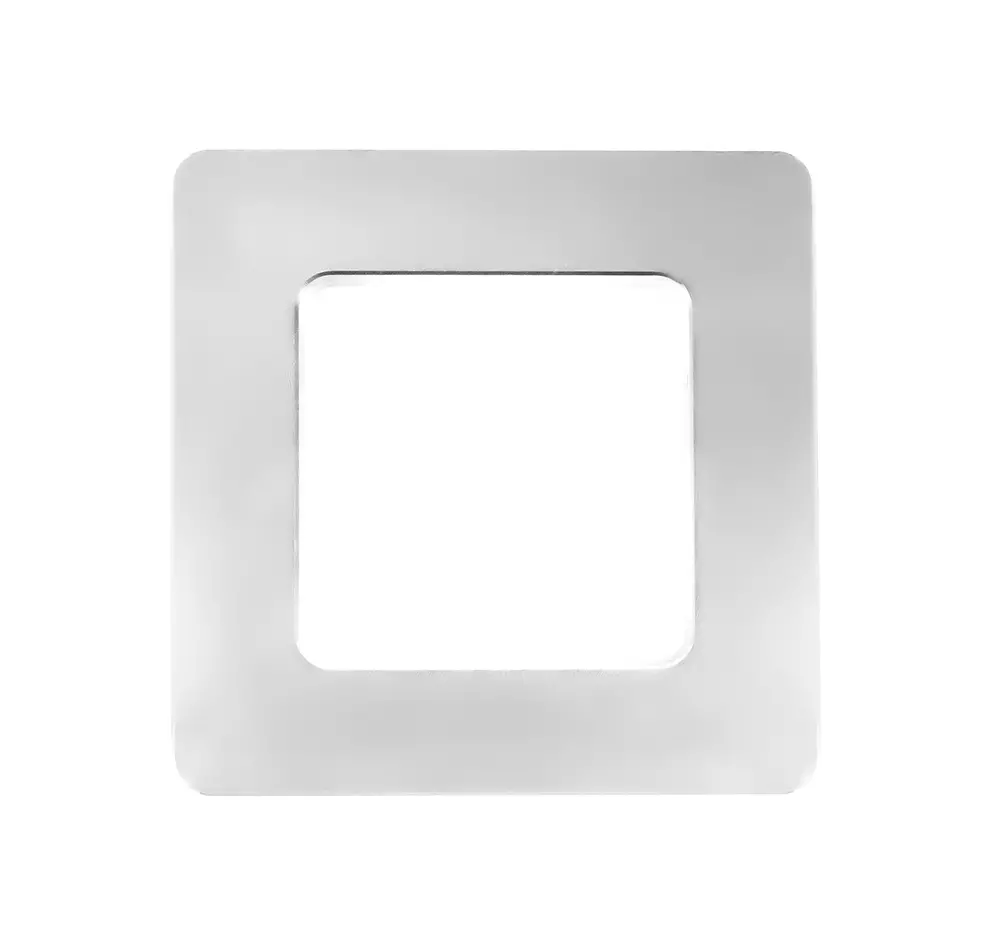

Adapter plate SMARTdrive Universal
outside 100 mm, converter mounting 68 mm, (not pre-drilled on the motor side)
For attaching SMARTdrive frequency converters to a motor.
All product photos are non-binding examples! Technical changes reserved.

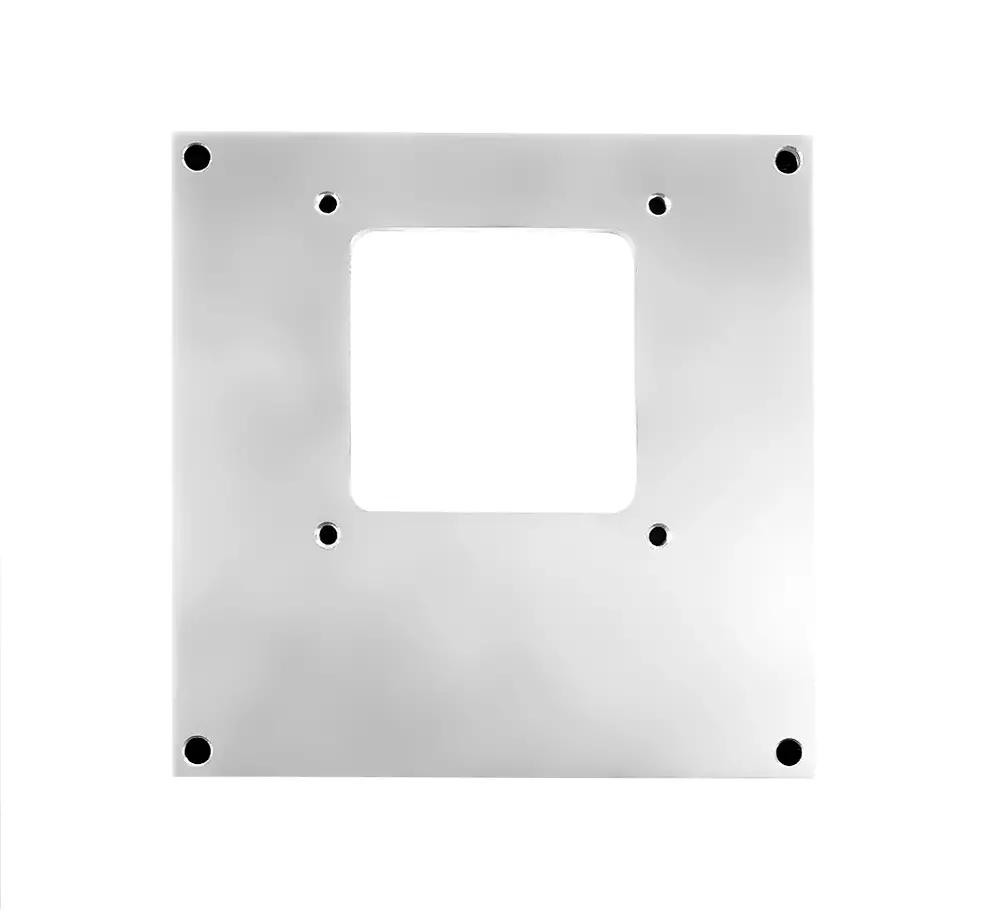

Adapter plate SMARTdrive J2-55
Outside 136mm, motor mounting 125mm, converter mounting 68mm
For attaching SMARTdrive frequency converters to a motor.
All product photos are non-binding examples! Technical changes reserved.
Adapter plate SMARTdrive J1-0308
Outside 90mm, motor mounting 75mm, converter mounting 64mm
For attaching SMARTdrive frequency converters to a motor.
All product photos are non-binding examples! Technical changes reserved.
