KV573-180-4-18.5 kW-88 rpm Bevel Geared Motor
Downloads
- JS- KV572 / KV573- Maßzeichnung / Data sheet
- JS- Elektromotor M3 180M- Datenblatt / Data sheet
- JS- KV572 / KV573- M3 180M- Step
- JS- K-Serie- Katalog / Catalog
- JS- KV-Serie- Betriebsanleitung
- JS- KV-series- Operating instructions
- JS- Elektromotoren- Betriebsanleitung
- JS- Electric motors- Operation instructions
Product information "KV573-180-4-18.5 kW-88 rpm Bevel Geared Motor"

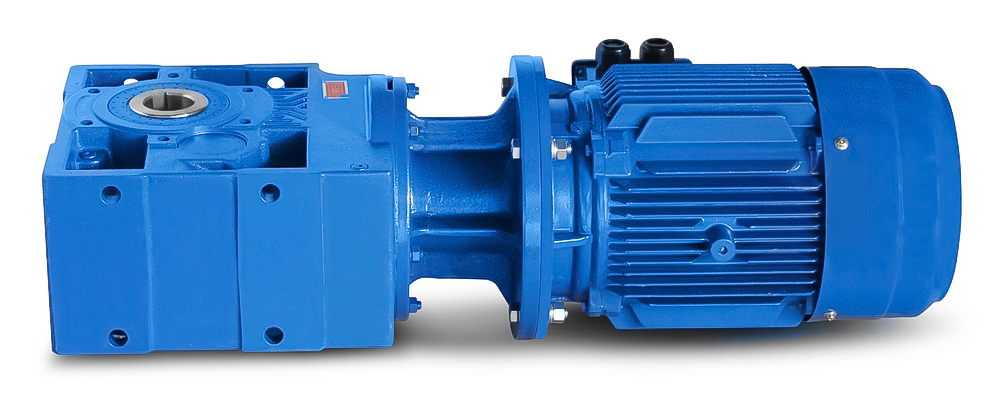

Bevel geared motor with IEC flange between gearbox and Electro motor
Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), Frequency= 50/ 60 Hertz.
Power= 18,5 kW, Speed (n²)= 88 rpm, Ratio (i)= 15,88, Torque (M²)= 1912 Nm,
Operating factor (fs)= 1,0, Type= B3, Hollow shaft= 60 mm, Weight= 321 kg, Paint= RAL5010.
Temperature sensor= 3 x PTC- Thermistor, Operating mode = S1- (100 % cdf), Terminal box= top (rotatable).
The geared motor is suitable for frequency converter operation and complies with IEC 60034-30: 2008.
The bevel gear can be operated in both directions and contains an oil filling on delivery.
According to VDE 0105 bzw. IEC 364 are all work on the electric drive only by qualified personnel
perform. For modifications or special designs please send inquiry.
When ordering, please select the desired installation position.
Important instructions
This drive is a custom-made product. A resignation or revocation of the purchase is excluded!
All product photos are non-binding examples!
| Performance: | 18,5 kW |
|---|---|
| Rotation speed: | 51 to 100 rpm |
| Series: | K-series |
| Shaft diameter: | 60 mm |
| Torque: | 1001 to 2000 Nm |
| Performance: | 18,5 kW |
|---|---|
| Rotation speed: | 51 to 100 rpm |
| Series: | K-series |
| Shaft diameter: | 60 mm |
| Torque: | 1001 to 2000 Nm |
