Helical-Gear-Motor- MV772-225M-45kW-101rpm
Product information "Helical-Gear-Motor- MV772-225M-45kW-101rpm"

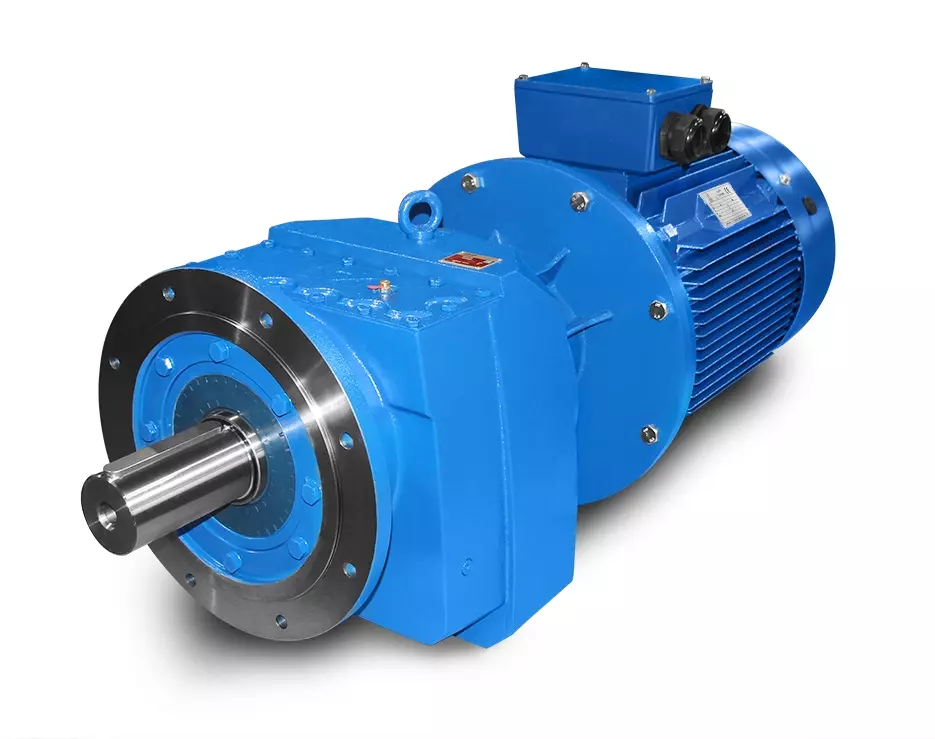

Helical geared motor (gearbox with IEC flange to the ac-motor),
Voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530). Frequency= 50/ 60 Hertz.
Power= 45.0 kW, Speed= 101 rpm, Ratio (i)= 14,54, Torque (M²)= 4110 Nm, Service factor (fs)= 1,8.
Type = B5, Special shaft = 90mm 140mm, Weight= 621.0kg, Paint= RAL5010.
Temperature sensor = 3 x PTC thermistors,Operating mode= S1- (100 % cdf), Terminal box= top (rotatable).
The helical gear is suitable for frequency converter operation and corresponds to the IEC 60034-30: 2008.
The gear motor can be operated in both directions and contains an oil filling on delivery.
According to VDE 0105 bzw. IEC 364 all work on the electric drive must only be carried out by
qualified specialist personnel. For modifications or special designs please send inquiry.
All product photos are non-binding examples! Technical changes reserved.
When ordering, please select the desired mounting position and design!
| Performance: | 45 kW |
|---|---|
| Rotation speed: | 101 to 200 rpm |
| Series: | M-series |
| Shaft diameter: | 90 mm |
| Torque: | 3001 to 5000 Nm |
| Performance: | 45 kW |
|---|---|
| Rotation speed: | 101 to 200 rpm |
| Series: | M-series |
| Shaft diameter: | 90 mm |
| Torque: | 3001 to 5000 Nm |
