Frequency- Inverter-Motor ED400-0110-90L-6

£460.74*

% £658.20* (30% saved)

Prices incl. VAT plus shipping costs

Available, delivery time: about 3-4 business days

Type of construction

Product number: 3X2M082108K227

Shipping fees: Article + Packaging

Notice: Shipping on pallet

Return excluded!

Downloads

Product information "Frequency- Inverter-Motor ED400-0110-90L-6"

Frequency converter, 3x 400V EASYdrive, with electric motor 1.1kW

Three-phase motor
Power= 1.1 kW, speed= 6 pole, shaft= 24 x 50 mm, total weight= 22.8 kg,
Design= Please select, input voltage= 3 x 400 V - 50 Hz, 3 x 460 V - 60 Hz (± 5 % according to VDE 0530),
Frequency= 50/60 Hertz, paint finish= RAL 5010 (gentian blue), protection class= IP55,
Temperature sensor= 3 x PTC thermistors, terminal box position= top, housing= Die-cast aluminum, insulation class = F (155 °C), ball bearings = SKF, C&U, or equivalent, cooling = axial fan (plastic),

Frequency converter
Power = 1.1 kW, size = A, input voltage = 3 x 400V +10% (three-phase), input frequency = 50/60 Hz,
output frequency = 0- 400 Hz, EMC filter = C2, protection class = IP65, dimensions = 233 mm x 153 mm x 120 mm,
mains current (input) = 2.6 A. Ideal control range = 5- 60 Hz, with constant nominal torque, below 30 Hz an external fan is required for cooling.

Product information
The EASYdrive drive controllers are CE, UL and CSA certified. The EASYdrive complies with EMC class C2 (with 3-phase mains supply) or C1 (with 1-phase mains supply) without external filter measures.

Possible variant selection!

Product selection

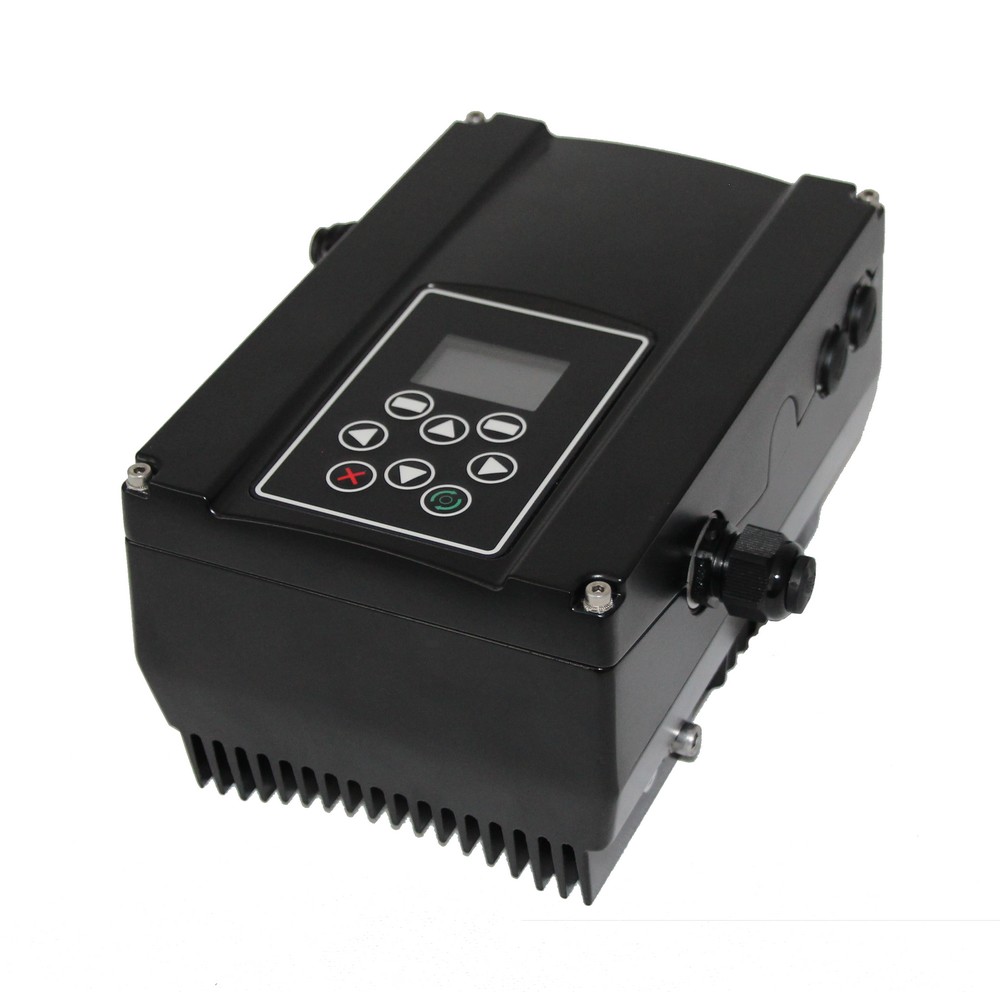

The "frequency converter with MMI control unit" shown is fully usable and contains a potentiometer built into the side.

Important information
This drive is a custom-made product. Withdrawal or cancellation of the purchase is excluded!
All product photos are non-binding examples! Technical changes reserved.

Control range:	here. 140 bis 1630 rpm
Performance:	1,1 kW
Series:	EASYdrive ED400 0,55kW - 22,0kW
Shaft diameter:	24 mm
Tension:	3 x 400 V
Type of construction:	B5

Properties "Frequency- Inverter-Motor ED400-0110-90L-6"

Control range:	here. 140 bis 1630 rpm
Performance:	1,1 kW
Series:	EASYdrive ED400 0,55kW - 22,0kW
Shaft diameter:	24 mm
Tension:	3 x 400 V
Type of construction:	B5

Accesories

EASYdrive-Bluetooth-Adapter

Bluetooth adapter for EASYdrive The EASYdrive offers a Bluetooth interface that integrates as a plug-in variant via the M12 can be. -only additional price, cannot be ordered individually- (image only product example) All product photos are non-binding examples! Technical changes reserved.

£124.35*

Details

EASYdrive- MMI handheld controller

MMI handheld control unit, incl. spiral cable 0.5m, with M12 screw-on coupling The following functions are possible with the EASYdrive MMI: • Parameterization of the device setting • Control (e.g. lock and unlock) • Display of various process variables • Storage of parameter sets (max. 8) • Transfer parameter sets to other INVEOR (product example only)

£140.85*

Details

External fan unit size 90

External fan, External fan unit, Motor size 90 Isoclass F, Protection class IP56, Weight 2.7 kg, Multivoltage. 1x230 V-50 Hz, 45 watts, 0.19 A, 2900 rpm, 91 m3/h, capacitor 3µF1x240 V-60 Hz, 55 watts, 0.22 A, 3400 rpm, 91 m3/h, capacitor 3µF3x230/400 V-50 Hz, 40 watts, 0.19 A/0.12 A, 2900 rpm, 91 m3/h3x 254/460 V-60 Hz, 55 watts, 0.19/0.11, 3500 rpm, 91 m3/hPainted RAL5010, total length 185 mm, inner diameter 175 mm To install the external fan it is necessary to remove the fan cover andremove the fan blade. If an extension cannot be used,the shaft has to be shortened. If ordered with a motor, the external fan can also be installedto be delivered. Please select version.

From £162.79*

Details

EASYdrive Touch operating terminal

Touch operator terminal for EASYdrive frequency converter The 7" touch operator terminal in dark gray is specially designed foroperating and monitoring tasks in all areasof industrial automation. The fanlesssystem with 32-bit Cortex A8 processor and 600 MHzclock has plenty of computing power and impresses withpleasantly fast page switching. The "EasyBuilder Pro" configuration software does not place any specialrequirements on your PC, is easy to use andis available free of charge. Écran graphique LCD TFT 7" 800 x 480 pixels Rétroéclairage LED Boîtier en plastique robuste Système de refroidissement sans ventilateur Horloge en temps réel RTC IP65 à l'avant, conforme NEMA4 Ethernet 10/100 BaseTX RS485 Hôte USB

£425.20*

Details

EASYdrive-breaking resistor BG A

Brake chopper with braking resistor size A for EASYdrive. 100 W, 100 ohms; IP65, connecting cable 510mm, L = 110mm W = 80mm H = 15mm. -only additional price, cannot be ordered individually- All product photos are non-binding examples!

£80.29*

Details

EASYdrive parameterization cable

Parameterization cable USB PC USB cable with interface converter PC software available for free download All product photos are non-binding examples! Technical changes reserved.

£124.35*

Details

ED230 foil keypad

The potentiometer integrated on the side enables a comfortable setpoint specification. The interface for the connection is available as standard. The potentiometer is available as an accessory. -The potentiometer is part of the converter and cannot be retrofitted.- All product photos are non-binding examples!

£16.50*

Details

Foot switch with metal housing F1-AU0-10V

Rated operational Voltage Ue 12-26 V DC Utilization category DC-13 Ue / Ie 12-26 DC / 0.2 A according to IEC / EN 60947-5-2 Voltage output (control range) 0- 10 V DC short-circuit protection device switching element permanent short-circuit u. overload-proof, clocking Protection class IIIM UB GND RL U-OUT U-OUT housing AL die-cast; Lid die-cast aluminum actuating elements foot pedal (PA) ambient temperature -30 ° C to +80 ° C contact type PNP closer, teachbar from 0.1 - 5.9 mm switching force pedal approx. 10 N (center of pedal) Mechanical life 10 x 106 switching cycles and switching frequency max. 50 / min; Fastening 2 M8 screws connection type screw connections (M3.5) number of connections 4, conductor cross sections solid 0.5 - 1.5 mm2 stranded wire with ferrule 0.5 - 1.5 mm2, cable entry 1 x M20 x 1.5 weight 1.5 kg, Protection class IP65 according to IEC / EN 60529 drawing ID: Z030

£401.18*

Details
