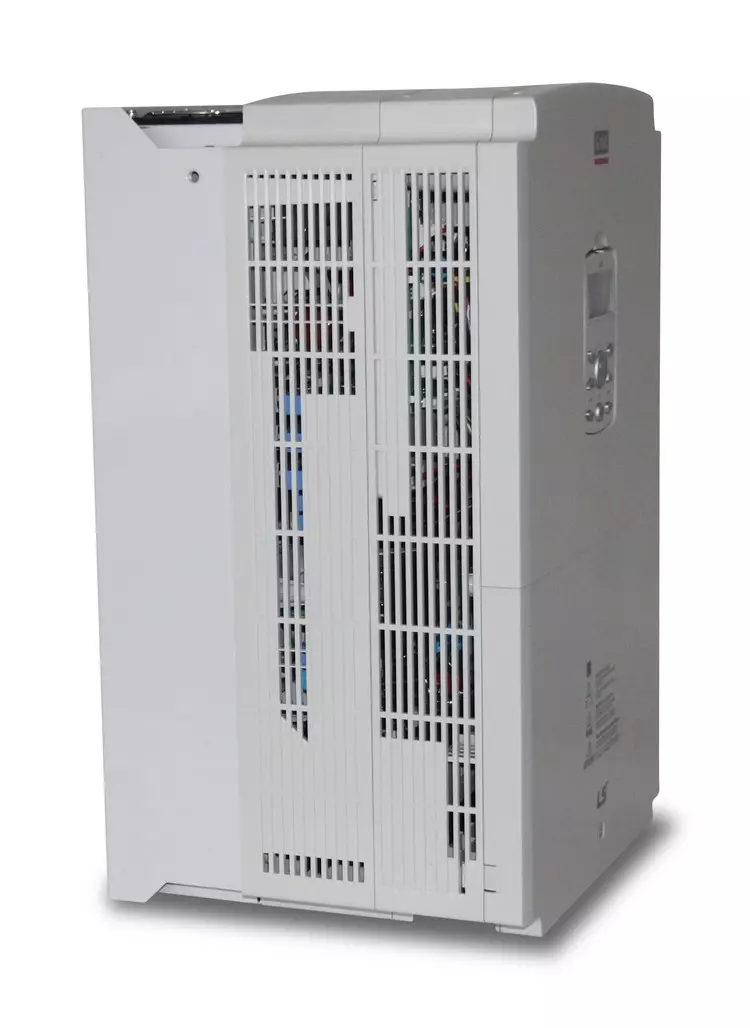

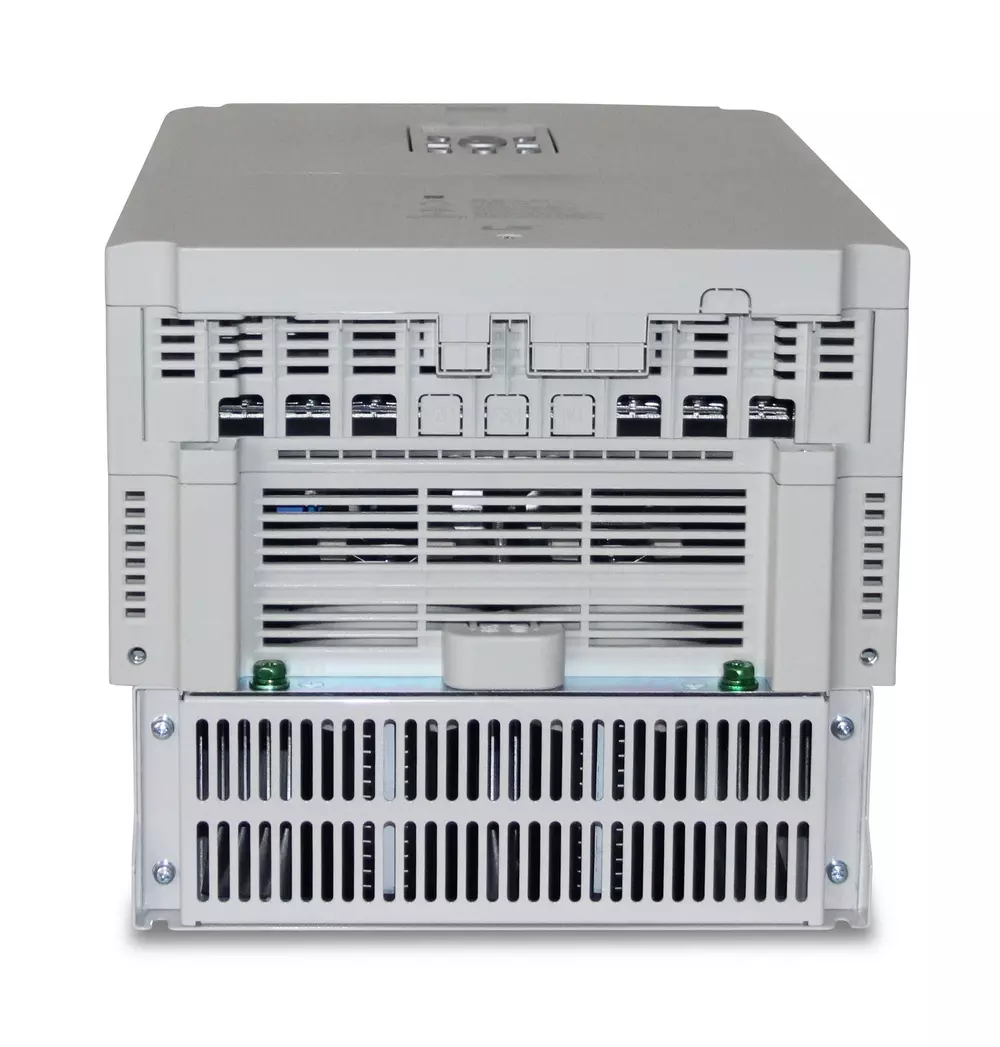

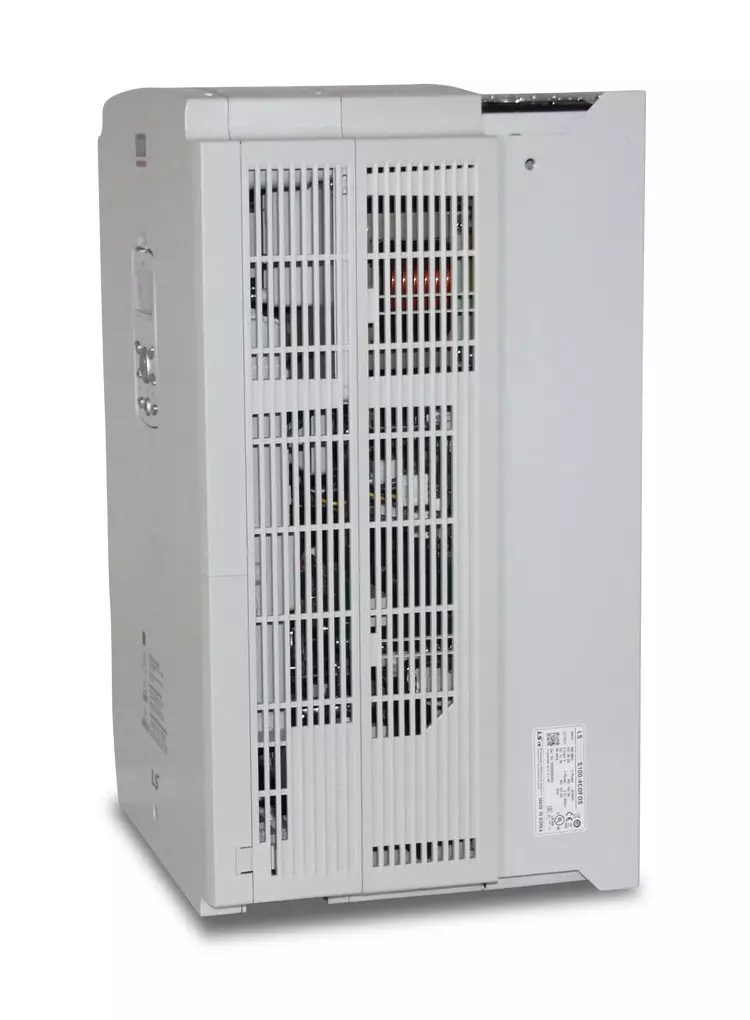

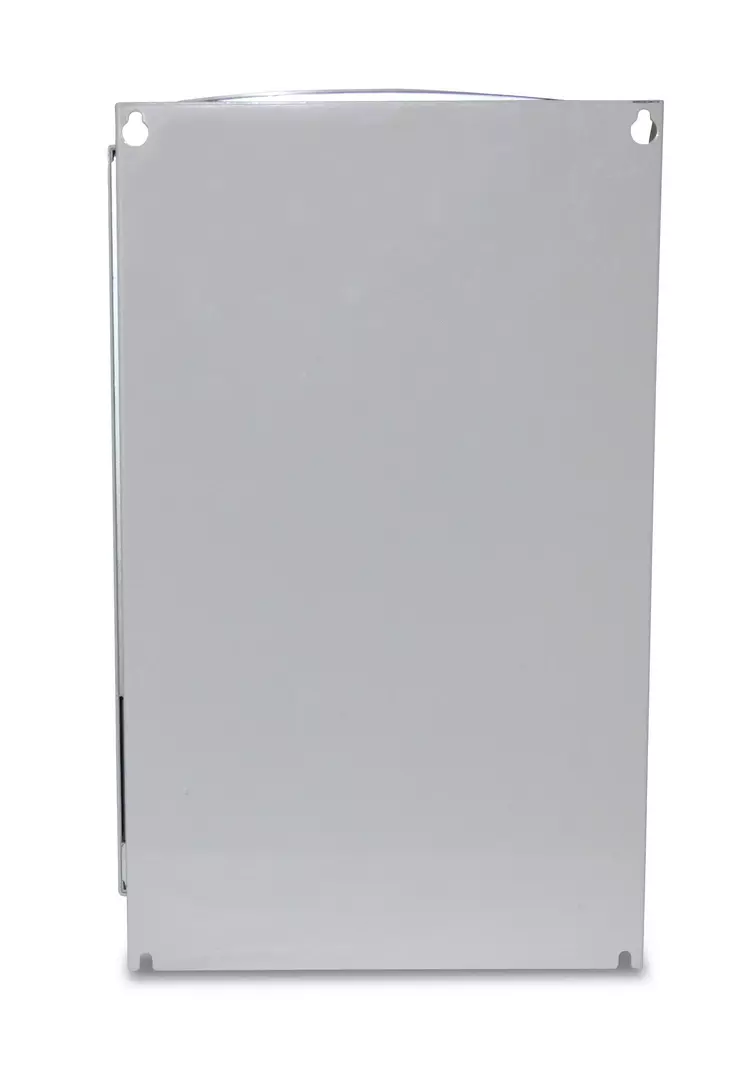

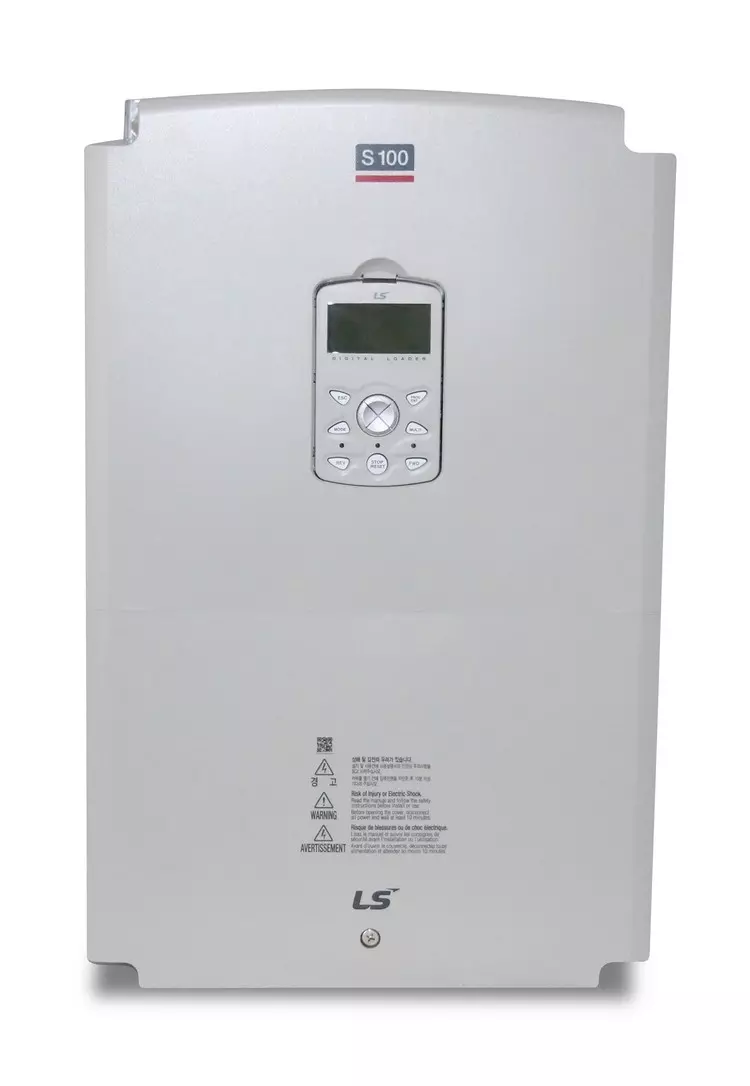

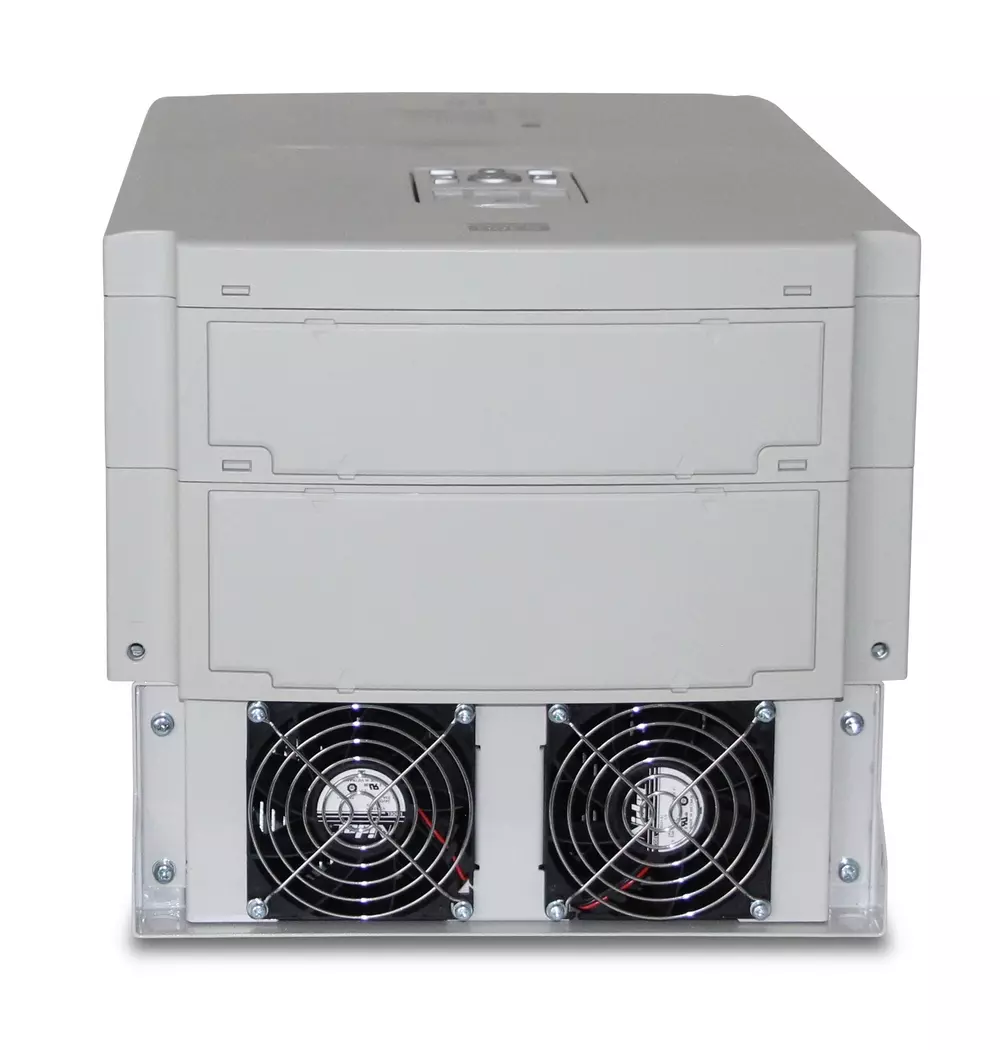

Frequency Inverter LS 0300S100-4EOFNS

£1,779.91*

Product number: 6031001300

Shipping fees: Article + Packaging

Downloads

Product information "Frequency Inverter LS 0300S100-4EOFNS"

Frequency inverter, VFD, 30.0 kW, 380V- 400V- 420V- 480V, IP20, built- in LED keypad, EMC filter (C3)

0.1-400Hz frequency output
1-15kHz carrier frequency
Constant torque / Variable torque dual rating
Selectable V/f and sensorless vector control
Powerful torque at overall Speed range
Fault history: Last 5 faults
High performances & functions: KEB (Kinetic Energy Buffering) protection,
Ride Through (LV Trip Delay) protection, Under Load Trip protection,
Power brake & Flux Brake function, Static motor parameter Auto-tuning
Enhanced process PID control with Sleep & Wake-up functions
Low leakage PWM algorism
Available IP66 enclosure (0.4-22kW) as built-in option
Built-in Dynamic braking transistor (0.75-22kW)
Available EMC Filter & DC Reactor as built-in option
Wide graphic LCD keypad (30-75kW)
Remote control using external wide graphic LCD keypad
Cooling fan On/Off control & Easy change
Extension I/O boards (Optional): 11 max. inputs & 6 max outputs
0-10Vdc / -10-+10Vdc analog input
Selectable PNP/NPN input signal
Built-in RS485 (LS Bus / Modbus RTU) communication
Communication boards (Optional): Profibus-DP, Ethernet, EtherCAT, Profinet, CANopen
Monitoring & commissioning PC based software tool (Drive View)

Manufacturer:	LS
Performance:	30 kW
Protection class:	IP20
Series:	S100 - the Modern
Tension:	3 x 400 V

Properties "Frequency Inverter LS 0300S100-4EOFNS"

Manufacturer:	LS
Performance:	30 kW
Protection class:	IP20
Series:	S100 - the Modern
Tension:	3 x 400 V
