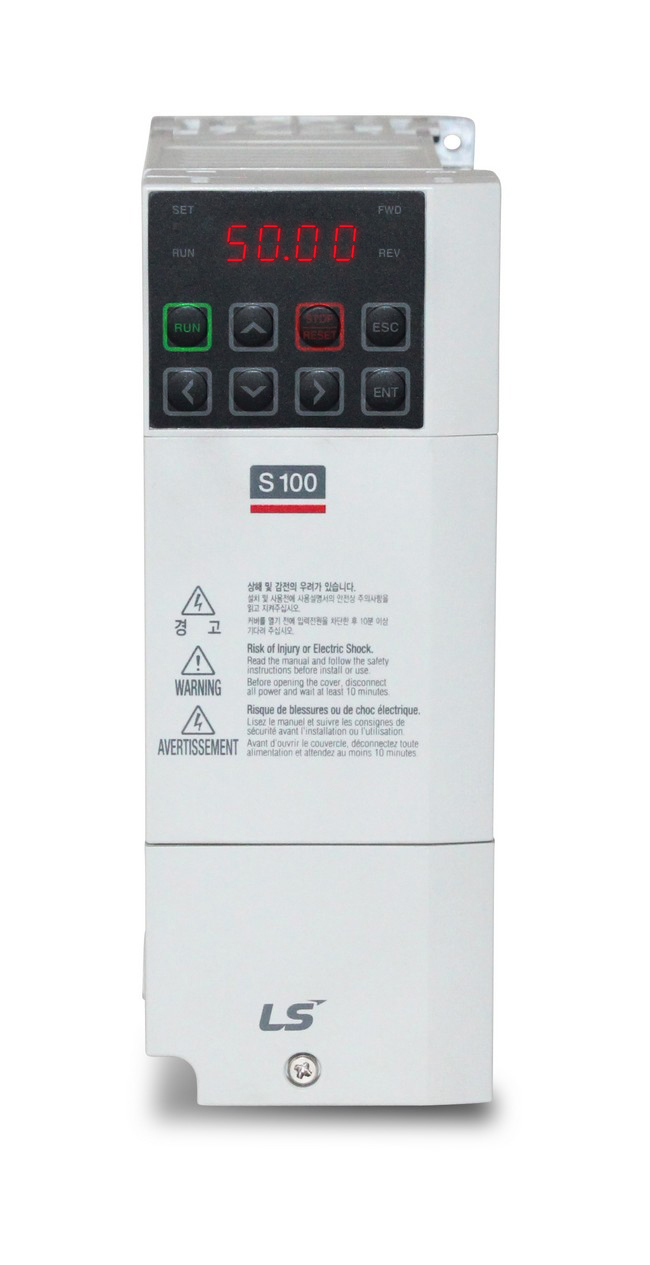

Frequency Inverter LS 0004S100-4EOFNS

€270.89*

Prices incl. VAT plus shipping costs

Delivery time about 3-4 business days

Product number: 6031007100

Shipping fees: Article + Packaging

Downloads

Product information "Frequency Inverter LS 0004S100-4EOFNS"

Frequency converter, 0.4 kW, 3 x 400 Volt, IP20, built-in LED control panel, EMC filter (C3)

Advanced sensorless control functions
High starting torque of 200% even at 0.5 Hz
High power density, compact dimensions, through-hole mounting
Integrated EMC filter (C3)
Compliance with global standards CE, UL, cUL
Heavy duty 150% for 1 minute or normal duty 120% for 1 minute
Autotuning function when stationary or rotating
Optional protection class IP66/NEMA4X with integrated main switch (up to 22 kW)
Safe stop "STO" integrated Torque Off), redundant input circuitry
Integrated display with easy operation, external remote display possible
Smart copy function, which does not require the S100 to be powered on
Simple fan replacement, with the replacement time displayed automatically
PLC sequences programmable with function blocks
Digital and analog I/O, Modbus TCP, Ethernet/IP, Profibus DP, CANopen (in preparation: Profinet, EtherCAT)

Manufacturer:	LS
Performance:	0,12 kW, 0,18 kW, 0,25 kW, 0,37 kW
Protection class:	IP20
Series:	S100 - the Modern
Tension:	3 x 400 V

Properties "Frequency Inverter LS 0004S100-4EOFNS"

Manufacturer:	LS
Performance:	0,12 kW, 0,18 kW, 0,25 kW, 0,37 kW
Protection class:	IP20
Series:	S100 - the Modern
Tension:	3 x 400 V

Accesories

Right/left switch, emergency stop for FU

Right/left switch, emergency stop for FU

Right-left rotation switch with emergency stop in a plastic housing Switch does not latch. External frequency converter control. Optionally with 1m, 3m or 5m cable (wired). Please select the version. All product photos are non-binding examples! Technical changes reserved.

From €171.65*

Control cable shielded 7 x 1.0 mm²

Control cable shielded 7 x 1.0 mm²

Suitable for frequency inverters CPR performance class: Eca, conductor material: Cu, bare conductor class: class 5 = finely stranded, core insulation: PVC TI1 stranding element: core, sheath material: PVC YM2 sheath color: gray RAL 7001, flame retardant : VDE 0482-332-1-2 / IEC 60332-1-2 Maximum permissible conductor temperature: 70 ° C Perm. External cable temperature fixed: -40 - +70 ° C Perm. Outside cable temperature, in motion -5 - +70 ° C bending radius, fixed installation: 6 x Ø, bending radius, moving: 20 x Ø nominal Voltage Uo: 300 V, nominal Voltage U: 500 V core identification: green -yellow + digits cable diameter approx. 10.1 mm Please select the cable length and the equipment. All product photos are non-binding examples! Technical changes reserved.

From €10.19*

Right/left switch, potentiometer for FU

Right/left switch, potentiometer for FU

Right-left rotation switch with potentiometer in a plastic housing Switch latching. External frequency converter control. Optionally without or with 1m, 3m or 5m cable (wired). Please select the version. All product photos are non-binding examples! Technical changes reserved.

From €89.79*

LS S100 / IS7 USB-cabel

LS S100 / IS7 USB-cabel

USB cable for S100 / IS7 / H100. (RJ45 > USB)

€33.38*

LS S100, IS7 LCD control panel without cable

LS S100, IS7 LCD control panel without cable

External LCD control panel for installation in the control cabinet for S100 and IS7 series Protection class: IP21 All product photos are non-binding examples! Technical changes reserved.

€72.04*

LS Smart Copier

LS Smart Copier

Smart Copier for S100, IS7, M100, H100, G100 When using the Smart Copier, the inverter does not require a power supply. The Run LED flashes during normal operation. The Error LED flashes when faults(e.g. communication errors) occur. Parameters can be easily copied/loadedfrom the inverter to the Smart Copier and vice versa using the control unit. Firmware and parameters stored in the Smart Copier can be downloaded to both the inverter I/O and thecontrol unit. Firmware can be downloadedfrom a PC using a USB cable. R45 cable (included with the purchase of the Smart Copier). All product photos are non-binding examples! Technical changes reserved.

€1,234.68*

Potentiometer- 0-10KΩ

Potentiometer- 0-10KΩ

Potentiometer, 0-10KΩ, suitable for control cabinet mounting. This stepless rotary potentiometer can be used for the complete range of LS frequency inverters. The potentiometer can be connected via screw terminals, no soldering is required. Suitable for installation in the control cabinet.

€25.36*

Foot switch with metal housing F1-AU0-10V

Foot switch with metal housing F1-AU0-10V

Rated operational Voltage Ue 12-26 V DC Utilization category DC-13 Ue / Ie 12-26 DC / 0.2 A according to IEC / EN 60947-5-2 Voltage output (control range) 0- 10 V DC short-circuit protection device switching element permanent short-circuit u. overload-proof, clocking Protection class IIIM UB GND RL U-OUT U-OUT housing AL die-cast; Lid die-cast aluminum actuating elements foot pedal (PA) ambient temperature -30 ° C to +80 ° C contact type PNP closer, teachbar from 0.1 - 5.9 mm switching force pedal approx. 10 N (center of pedal) Mechanical life 10 x 106 switching cycles and switching frequency max. 50 / min; Fastening 2 M8 screws connection type screw connections (M3.5) number of connections 4, conductor cross sections solid 0.5 - 1.5 mm2 stranded wire with ferrule 0.5 - 1.5 mm2, cable entry 1 x M20 x 1.5 weight 1.5 kg, Protection class IP65 according to IEC / EN 60529 drawing ID: Z030

€499.74*

Right-left-turn switch for VFD

Right-left-turn switch for VFD

Right-left rotation switch with potentiometer and emergency stop in a plastic housing. Switch not latching. External frequency converter control. Potentiometer connection solder contacts 1 NO contact each for left and right rotation Housing dimensions in mm (WxHxD): 160x80x55 Color: similar to RAL7035 Potentiometer: 2.2k / 2W, rotation angle 270 °, rotary knob : 32mm cable gland: M16, clamping range 5-10mm degree of protection: IP65, for connection in the control circuit Optionally without or with 1m, 3m or 5m cable (wired). Please choose version. All product photos are non-binding examples!

From €382.79*

Motor connection cable shielded 4 x 1.5 mm²

Motor connection cable shielded 4 x 1.5 mm²

EMC-optimized cable between frequency converter and motor, low-capacity, double shielded. TheShielding consists of an aluminum-clad foil winding combined with tinned copper braid. Technical specifications:Classification ETIM 5: ETIM 5.0 Class-ID: EC000057ETIM 5.0 Class Description: Power cableClassification ETIM 6: ETIM 6.0 Class-ID: EC000057ETIM 6.0 Class Description: Power cableCore identification code: colored according to HD 308 S2 VDE 0293-308Conductor structure: Fine wire according to VDE 0295 class 5 / IEC 60228 class 5Minimum bending radius:Occasionally moved: 15 x outer diameterFixed installation: 4 x outer diameterNominal Voltage: U0 / U: 600/1000 VTest Voltage: wire / wire: 4 kVCore / screen: 4 kVTemperature range: Moving: -5 ° C to + 70 ° CFixed installation: -40 ° C to + 70 ° CPVC outer sheath: transparentCable diameter about 11.4 mmPlease select the cable length.The cables are made to order. A withdrawal or withdrawal from the purchase is excluded!All product photos are non-binding examples!

From €3.81*

LS S100 remote LED keypad

LS S100 remote LED keypad

External control panel for installation in the control cabinet for M100 series. Optionally with 2m, 3m, or 5m connection cable. All product photos are non-binding examples! Technical changes reserved.

From €45.90*

LS S100, IS7 mounting frame with cable

LS S100, IS7 mounting frame with cable

Installation frame for LCD control panel for S100 and IS7 series With 3m cable, also in protection class IP66. Please select. All product photos are non-binding examples! Technical changes reserved.

From €23.97*

LS Profibus

LS Profibus interface card only for S100, IS7 or G100. Please select series. All product photos are non-binding examples! Technical changes reserved.

From €174.60*

LS EtherCAT

LS EtherCAT interface card only for S100. All product photos are non-binding examples! Technical changes reserved.

€164.62*

MCRA 100 Watt 1200 Ohm breaking resistor

MCRA 100 Watt 1200 Ohm breaking resistor

MCRA-100 braking resistor for 100 watts 1200 Ohm Dimensions: L = 150mm W = 35mm H = 19mm Braking torque: 150% Temperature range: -55 ° C - 200 ° C Voltage class: 400 volts All product photos are non-binding examples!

€42.82*
