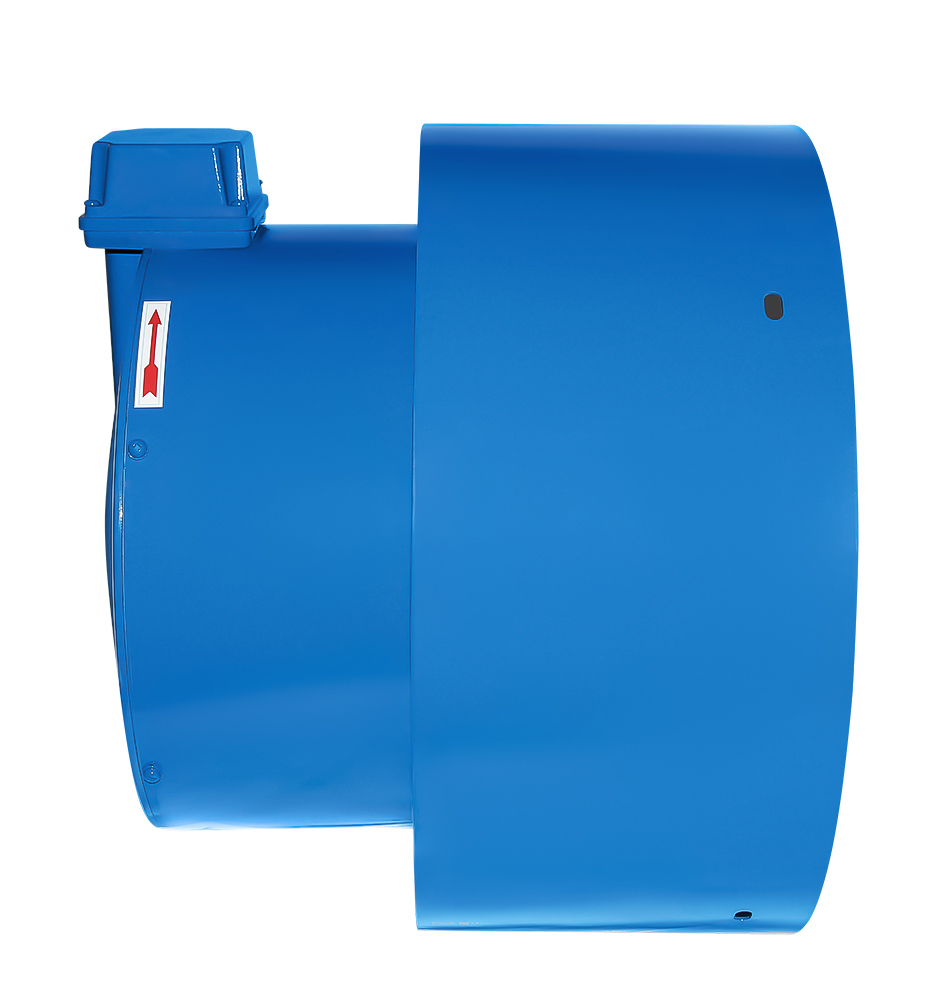

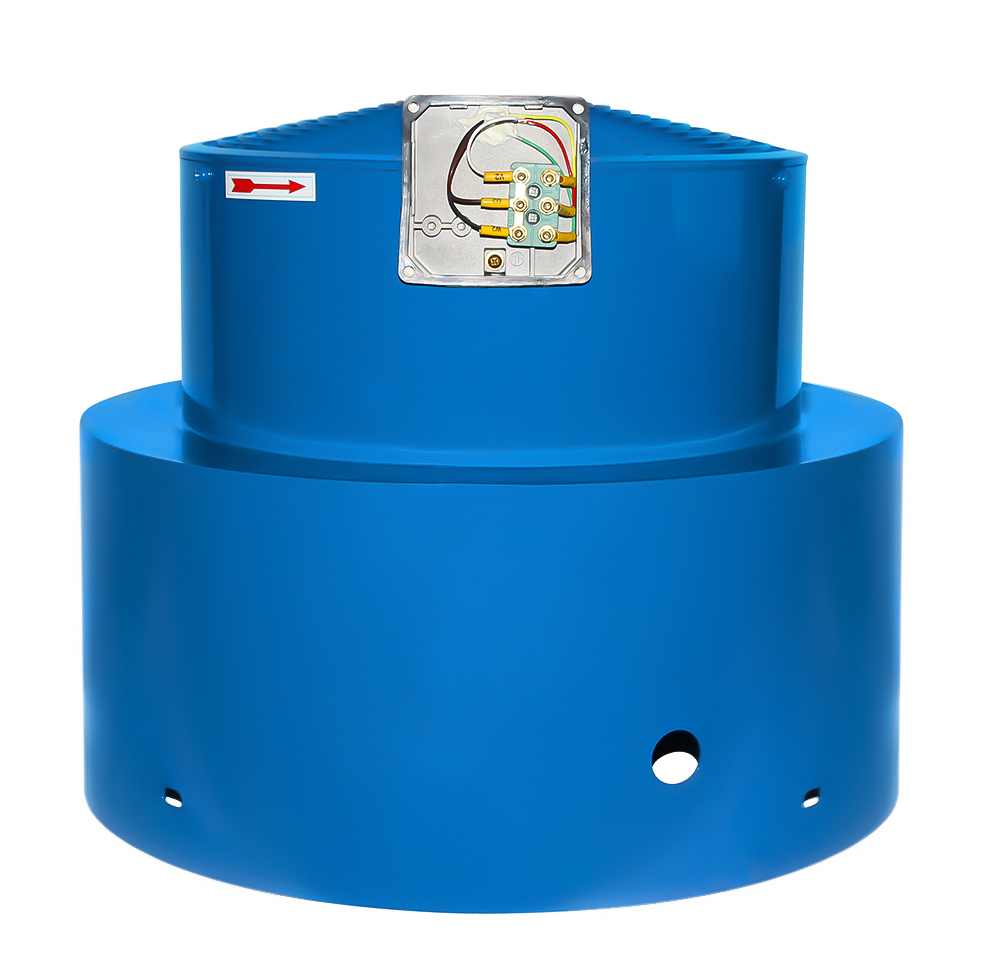

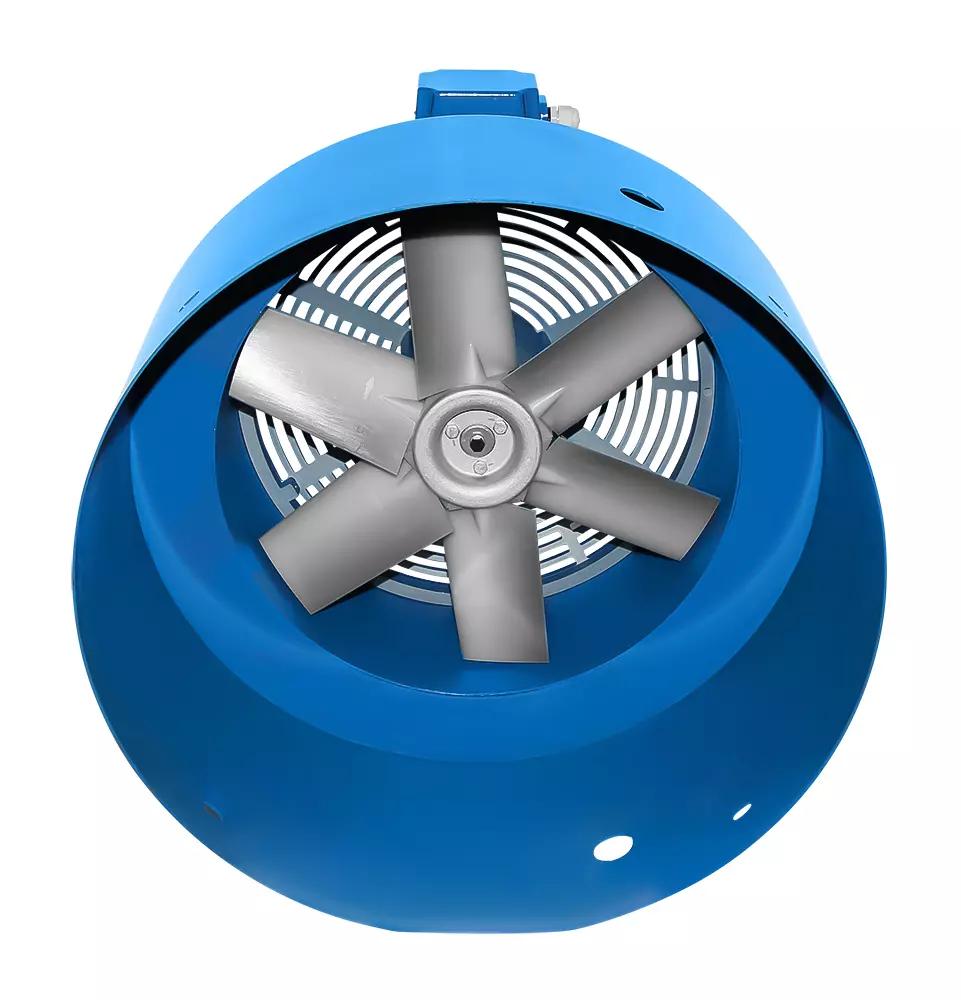

External fan unit size 280
Product number:
FLA-G280M
Downloads
Product information "External fan unit size 280"
External fan, external fan unit, motor size 280
Insulation class F, protection class IP56, weight approx. 26 kg, 2415 m³/h.
3x230/400 V-50/60 Hz, 0.255/0.3 watts, 1.5/1.1 A, 1450/1680 rpm,
paint RAL5010, total length 475 mm, clearance 260 mm, inner diameter 556 mm
To install the external fan, it is necessary to remove the fan cover and the fan blade. If an extension cannot be used, the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.
| For size: | BG 280 |
|---|---|
| Protection class: | IP56 |
| Protective roofs: | external fan |
| Tension: | 3 x 230/400 V |
Properties "External fan unit size 280"
| For size: | BG 280 |
|---|---|
| Protection class: | IP56 |
| Protective roofs: | external fan |
| Tension: | 3 x 230/400 V |
