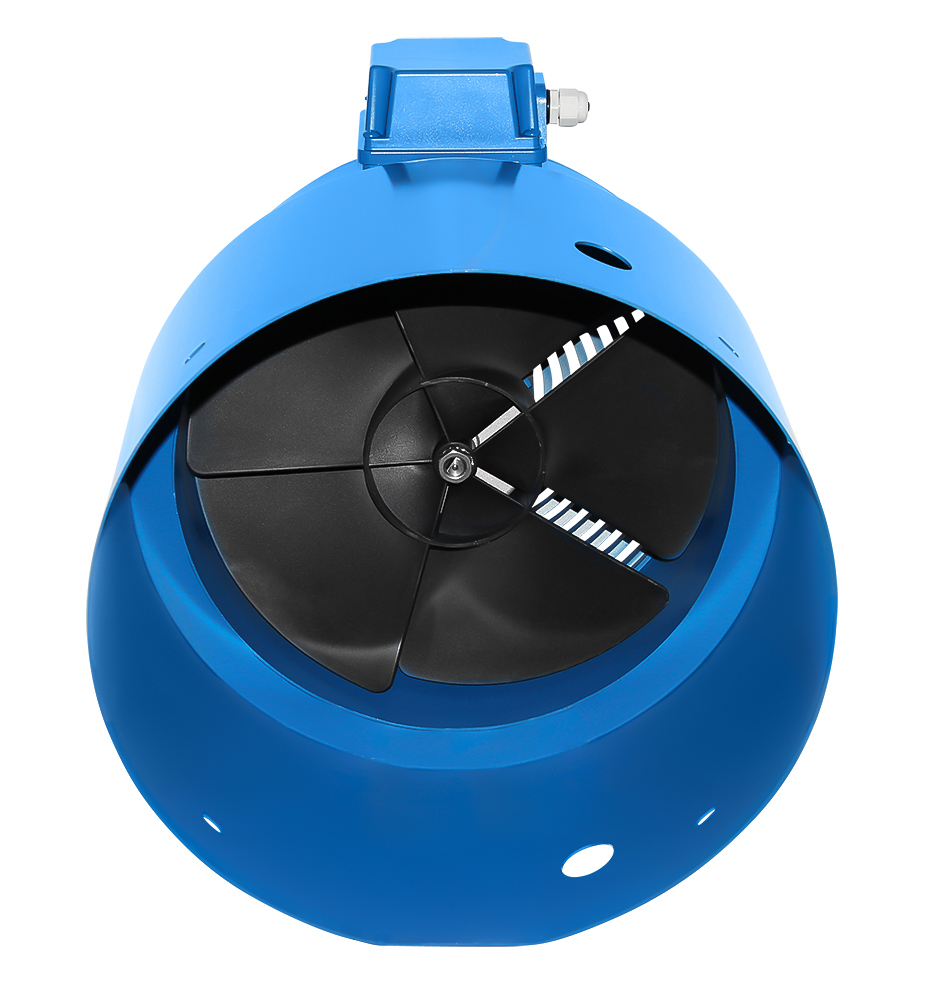

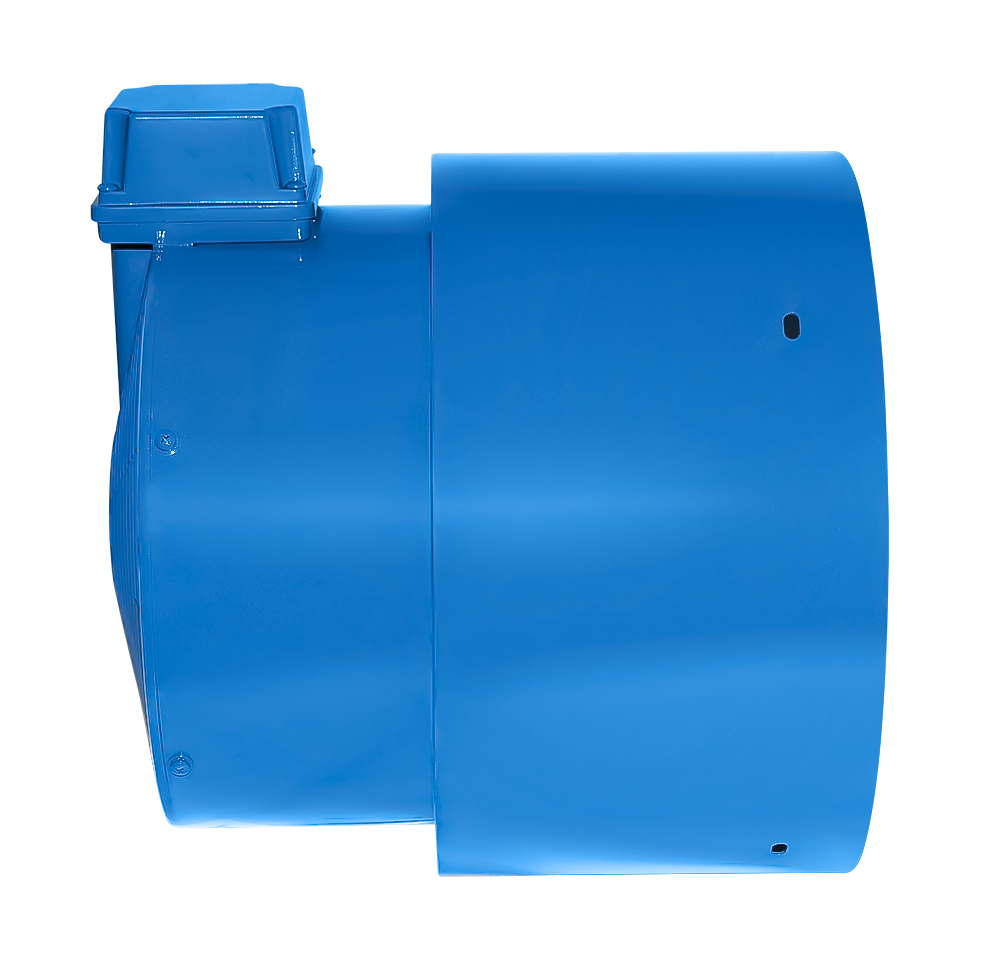

External fan unit size 180
Product number:
FLA-G180M
Downloads
Product information "External fan unit size 180"
External fan, external fan unit, motor size 180
Insulation class F, protection class IP56, weight approx. 10 kg, multi-voltage.
1x230 V-50/60 Hz, 165 watts, 0.69 A, 2800/3300 rpm, x m3/h, capacitor 6µF
3x230/400 V-50/60 Hz, 140/230 watts, 0.4/0.6 A, 2800/3300 rpm,
3x400 V-50/60 Hz, 140/230 watts, 0.23/0.36 A, 2800/3300 rpm,
Paint finish RAL5010, total length 335 mm, clearance 210 mm, inner diameter 357 mm
To install the external fan, it is necessary to remove the fan cover and the fan blade. If an extension cannot be used, the shaft must be shortened. If ordered with a motor, the external fan can also be delivered assembled. Please select the version.
| For size: | BG 180 |
|---|---|
| Protection class: | IP56 |
| Protective roofs: | external fan |
| Tension: | 1 x 230 V, 3 x 230/400 V, 3 x 400 V |
Properties "External fan unit size 180"
| For size: | BG 180 |
|---|---|
| Protection class: | IP56 |
| Protective roofs: | external fan |
| Tension: | 1 x 230 V, 3 x 230/400 V, 3 x 400 V |
