EASYdrive CANopen
Product number:
JS-ED-Canopen
Notice:
Cannot be ordered individually!
Product information "EASYdrive CANopen"
CANopen interface card for EASYdrive.

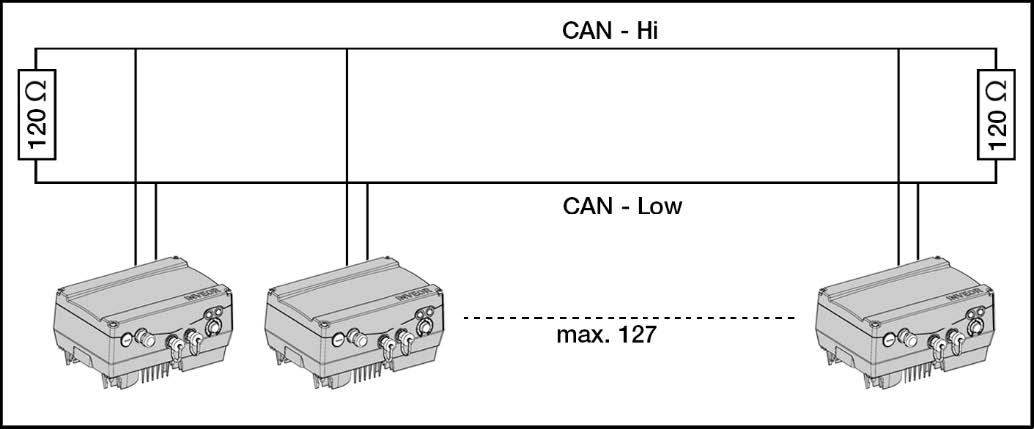

The CANopen bus system belongs to the fieldbus family and is based on the CAN bus
(Controller Area Network). As a rule, the network is built up in a linear structure.
The maximum data transfer rate on a CANopen bus can be up to 1 Mbit / s and
depends on the cable length.
A maximum of 127 participants may exist in the bus association.
Including M12 connection cable open 2 m, M12 connector / open / CANopen / 5-pin / 2 m / A-coded.
The interface card is part of the converter and cannot be retrofitted.
All product photos are non-binding examples! Technical changes reserved.
Properties "EASYdrive CANopen"
| Manufacturer: | EASYdrive |
|---|---|
| Protective roofs: | Interface cards |
| Series: | EASYdrive ED230 0,37kW - 1,5kW, EASYdrive ED400 0,55kW - 22,0kW |
| Typ: | CANopen |
