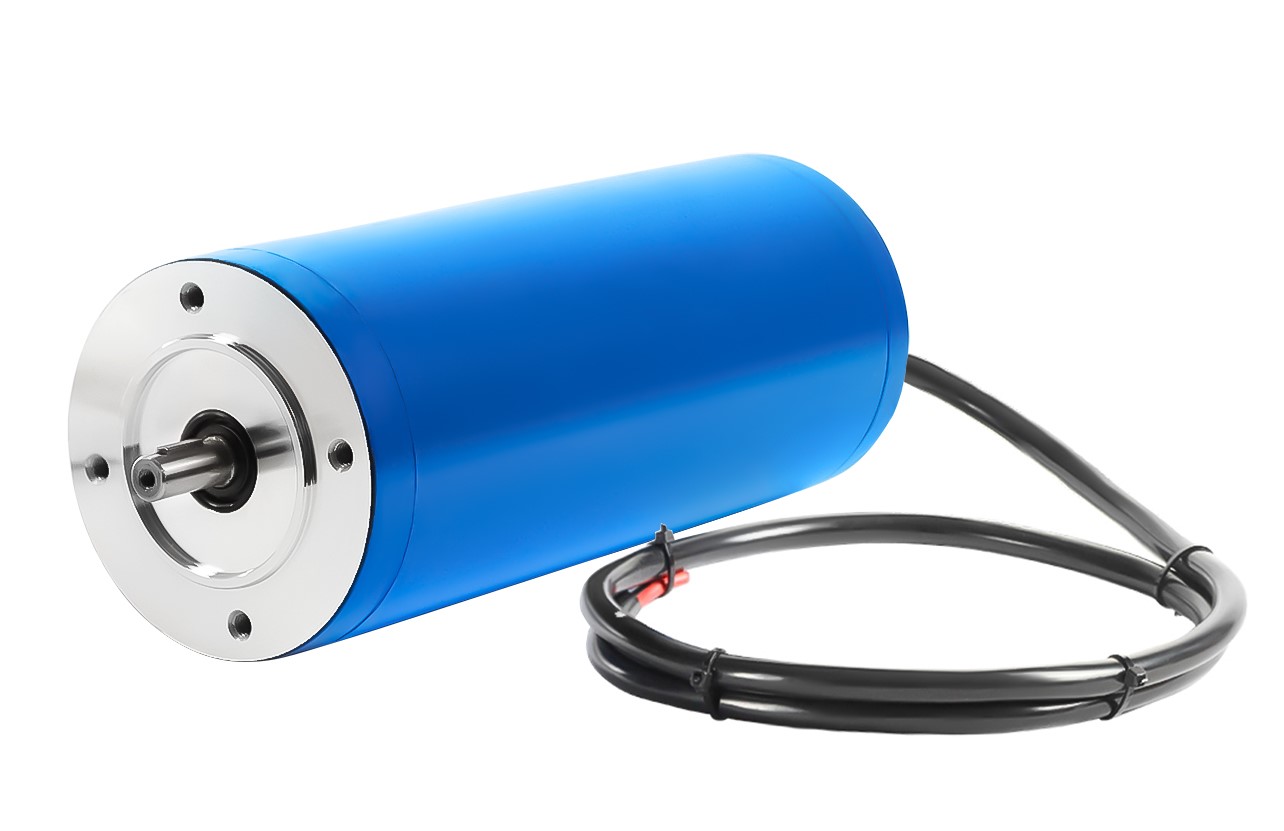

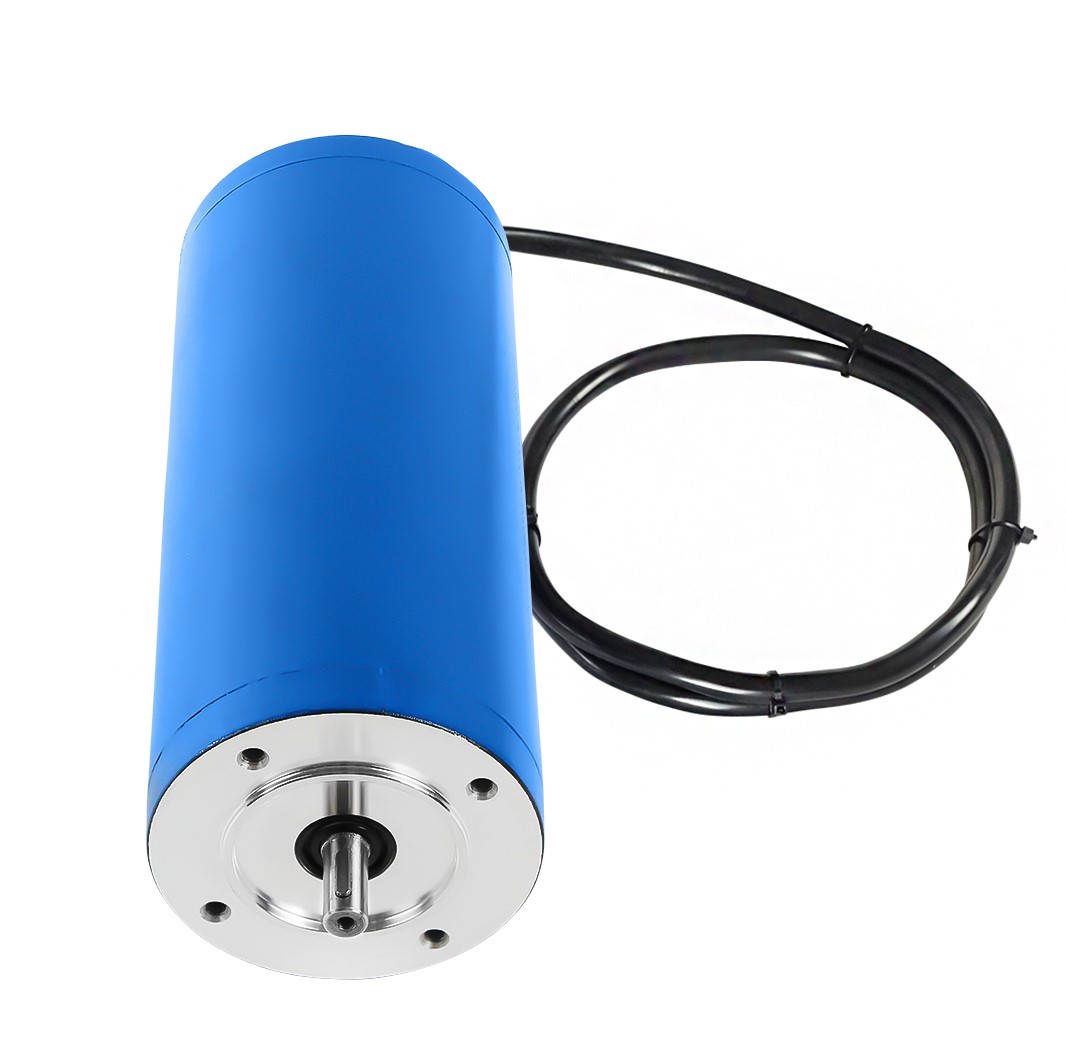

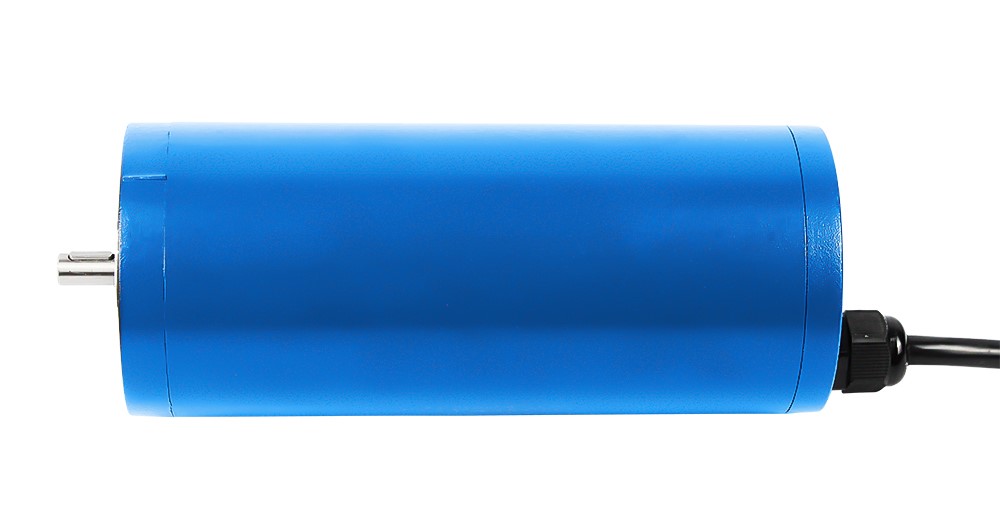

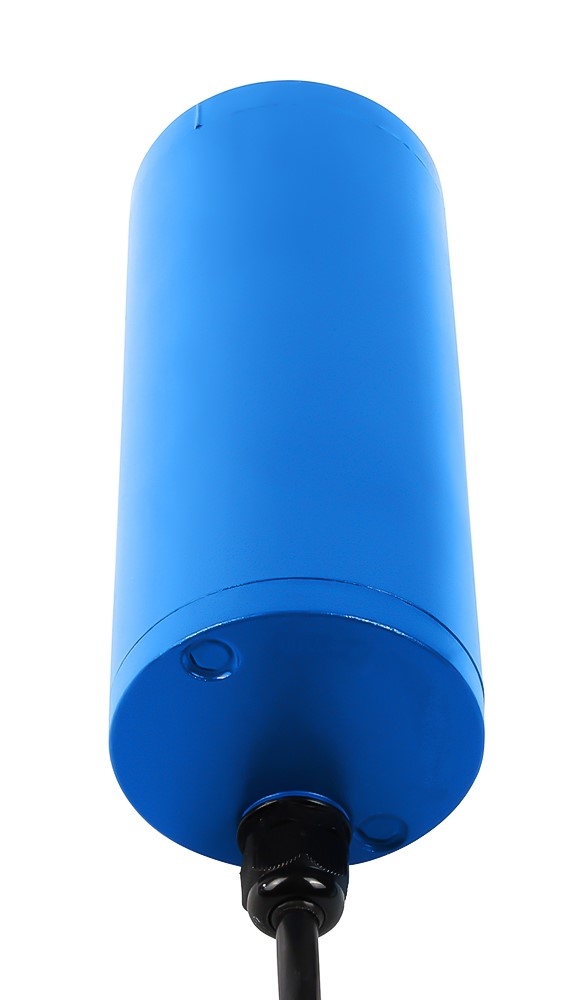

DC motor EC180, 24V, 0,25 kW- 2pol- B14, IP66, IEC56
Product number:
1L57040D02A207
Product information "DC motor EC180, 24V, 0,25 kW- 2pol- B14, IP66, IEC56"
DC motor, Voltage= 24 V-DC, Shaft 9x20 mm,
Operating mode= S2 (short-term operation), Weight= 3.4 kg, Current consumption= 24V/15.0A,
Motor speed= 2-pole, Connection= lead-out cable (1m), Flange 80x50x65 mm,
Protection class= IP66. An external speed control is optionally available.
According to VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified personnel. Specialist personnel.
All product photos are non-binding examples! Technical changes reserved.
| Direction of rotation: | Left, Right |
|---|---|
| Flange dimensions: | 80 x 50 x 65 mm |
| For size: | BG 56 |
| Operating mode: | S2 |
| Performance: | 0,25 kW |
| Protection class: | IP66 |
| Rotation speed: | 3000 rpm / 2 polig |
| Shaft diameter: | 9 mm |
| Shaft dimensions: | 9 x 20 mm |
| Tension: | 24 V DC |
| Type of construction: | B14 |
