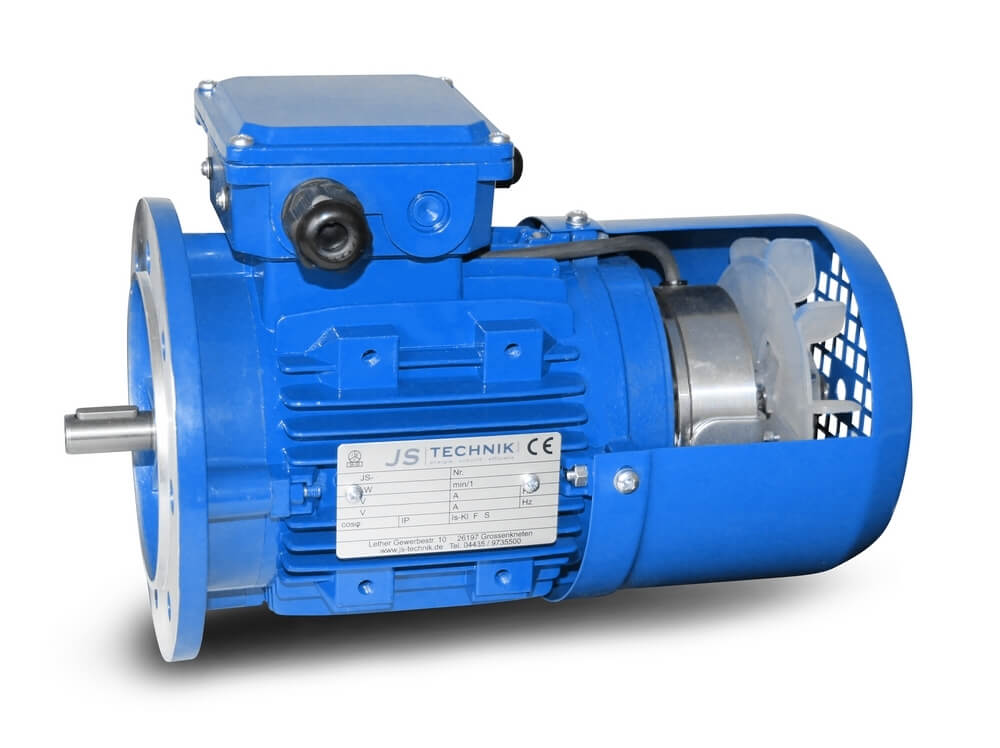

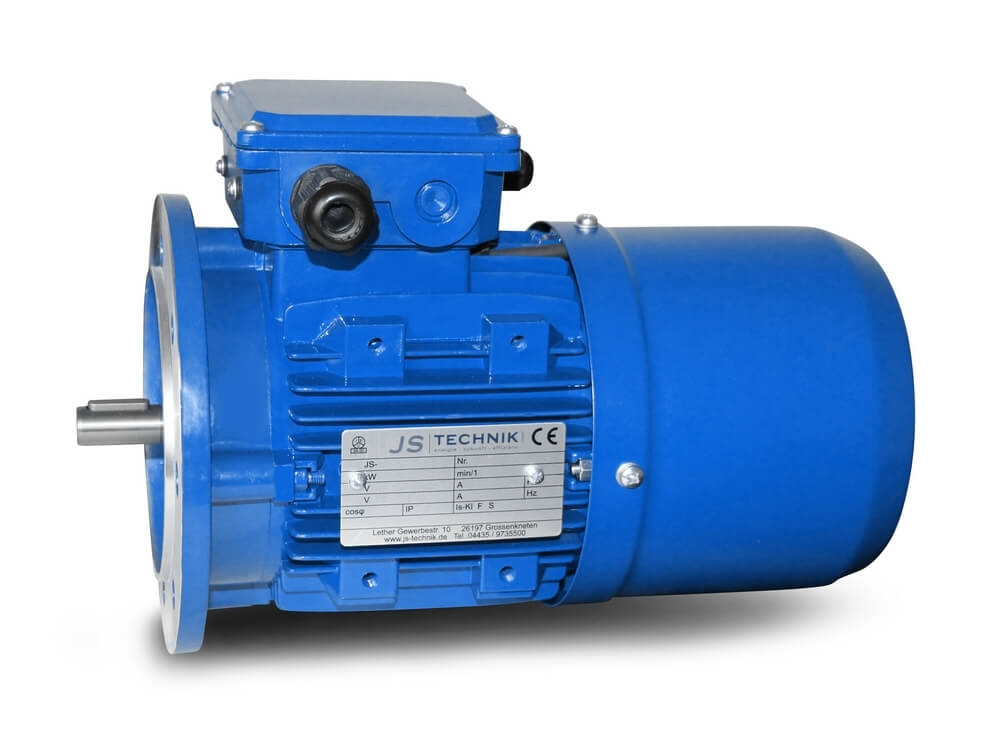

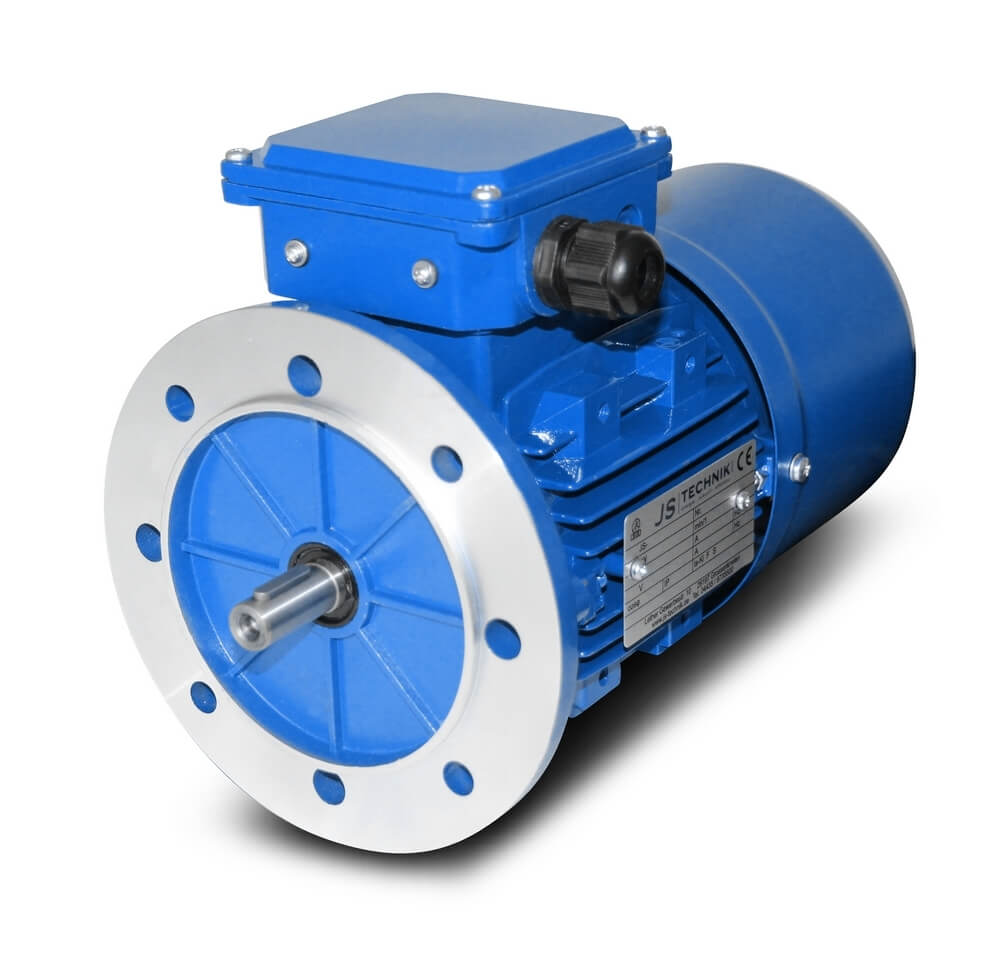

Brake motor BMS 801 - 0.37 kW-6pole-B5
Product information "Brake motor BMS 801 - 0.37 kW-6pole-B5"
Brake motor, Power = 0,37 kW, Speed= 1000 Upm
Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% gemäß VDE 0530), Temperature sensor = 3 x PTC thermistors, p>
Color tone = RAL 5010 (gentian blue), Frequency = 50/60 hertz, Degree of protection = IP55, Brake= 8 Nm, 230V with rectifier. p>
Terminal box position = top (rotatable), Housing = die cast aluminum, Insulation class = F (155°C), Welle= 19 x 40 mm, p>
Ball bearing = SKF, C&U or equivalent, Cooling = Axial fan (plastic), Motor feet = can be screwed on or unscrewed.
The Electric motor is suitable for use with frequency converters and complies with IEC 60034-30: 2008.
The spring-loaded brake brakes the Electro motor in de-energized state. In inverter mode, the brake is
resp. to control the brake rectifier externally. For manual unlocking, a manual override lever is optionally available.
The brake motor is suitable for both directions of rotation. All product photos are non-binding examples! Technical changes reserved.
| Efficiency Class: | IE 1 |
|---|---|
| Performance: | 0,37 kW |
| Rotation speed: | 1000 rpm / 6 polig |
| Shaft diameter: | 19 mm |
| Type of construction: | B5 |
| Efficiency Class: | IE 1 |
|---|---|
| Performance: | 0,37 kW |
| Rotation speed: | 1000 rpm / 6 polig |
| Shaft diameter: | 19 mm |
| Type of construction: | B5 |
