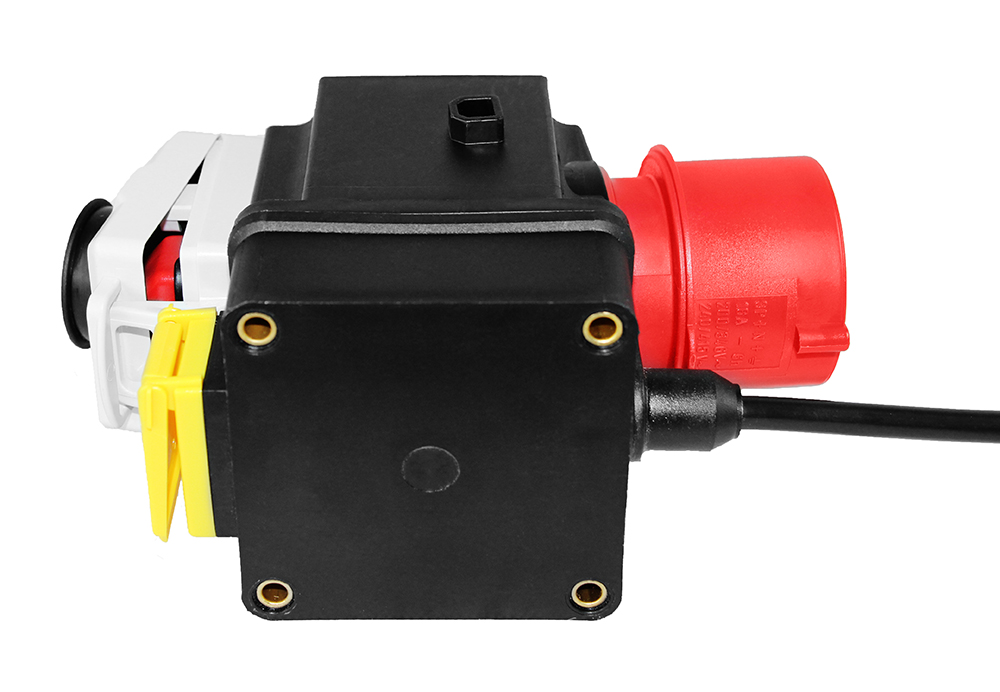

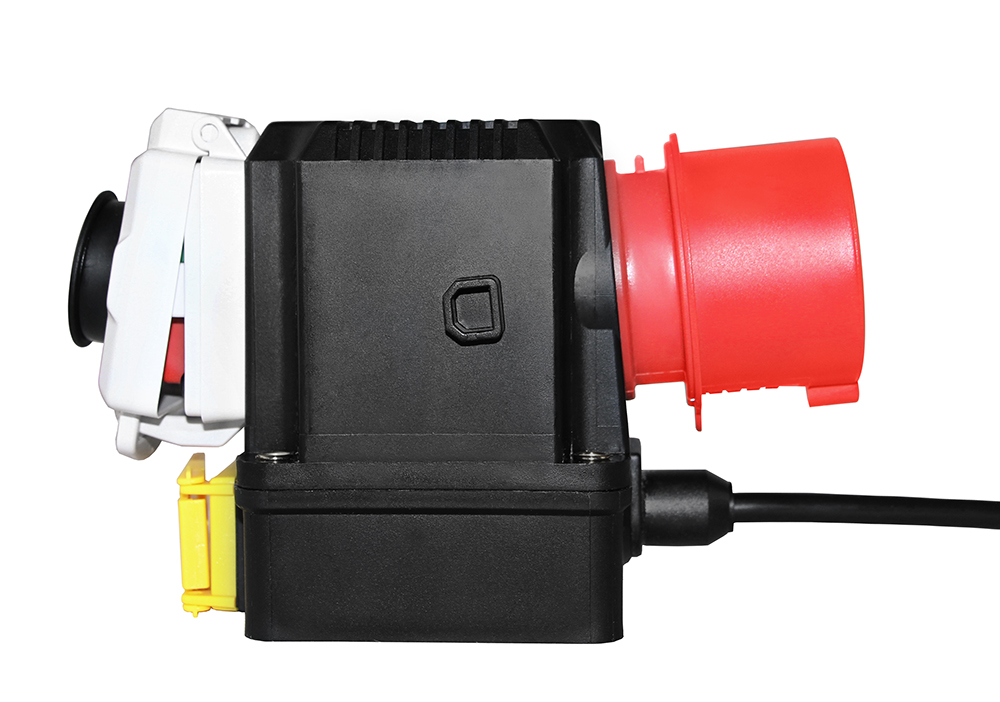

400V motor switch, left/right rotation, on-off-stop
Product number:
400V-R-L-9A
Downloads
Product information "400V motor switch, left/right rotation, on-off-stop"
Motor switch, 400V, right-left rotation, on-off-stop
Direction of rotation= right/left (can only be operated when the machine is at a standstill)

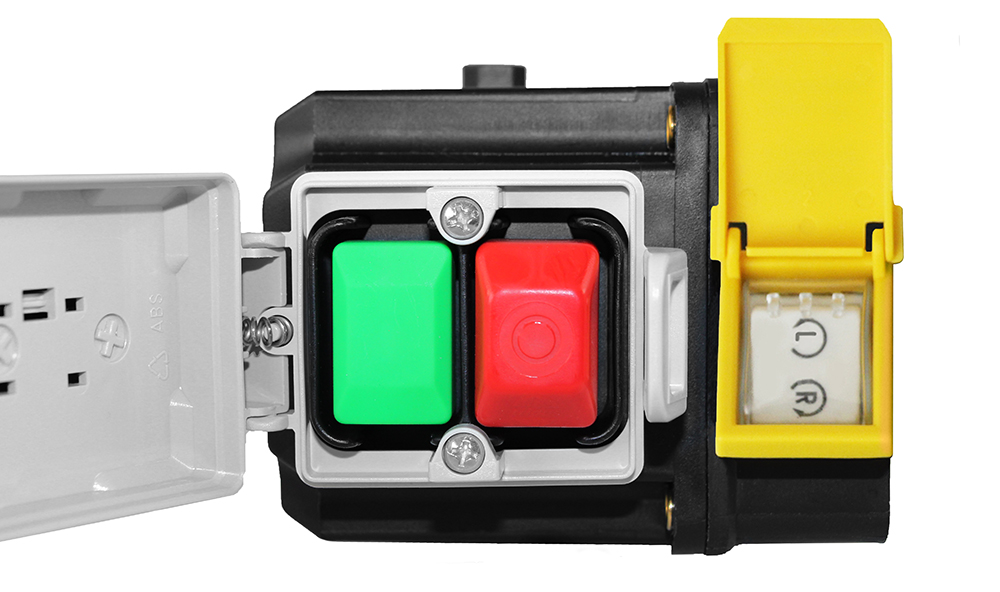

Switch= on, off, quick stop, lockable
Motor voltage= 3 x 400 V
Motor current= up to 9.0A (4kW for 4-pole motor)
Circuit= undervoltage release
Cable length to the motor= approx. 70 cm with cable lugs
Housing= polypropylene
Protection class= IP54

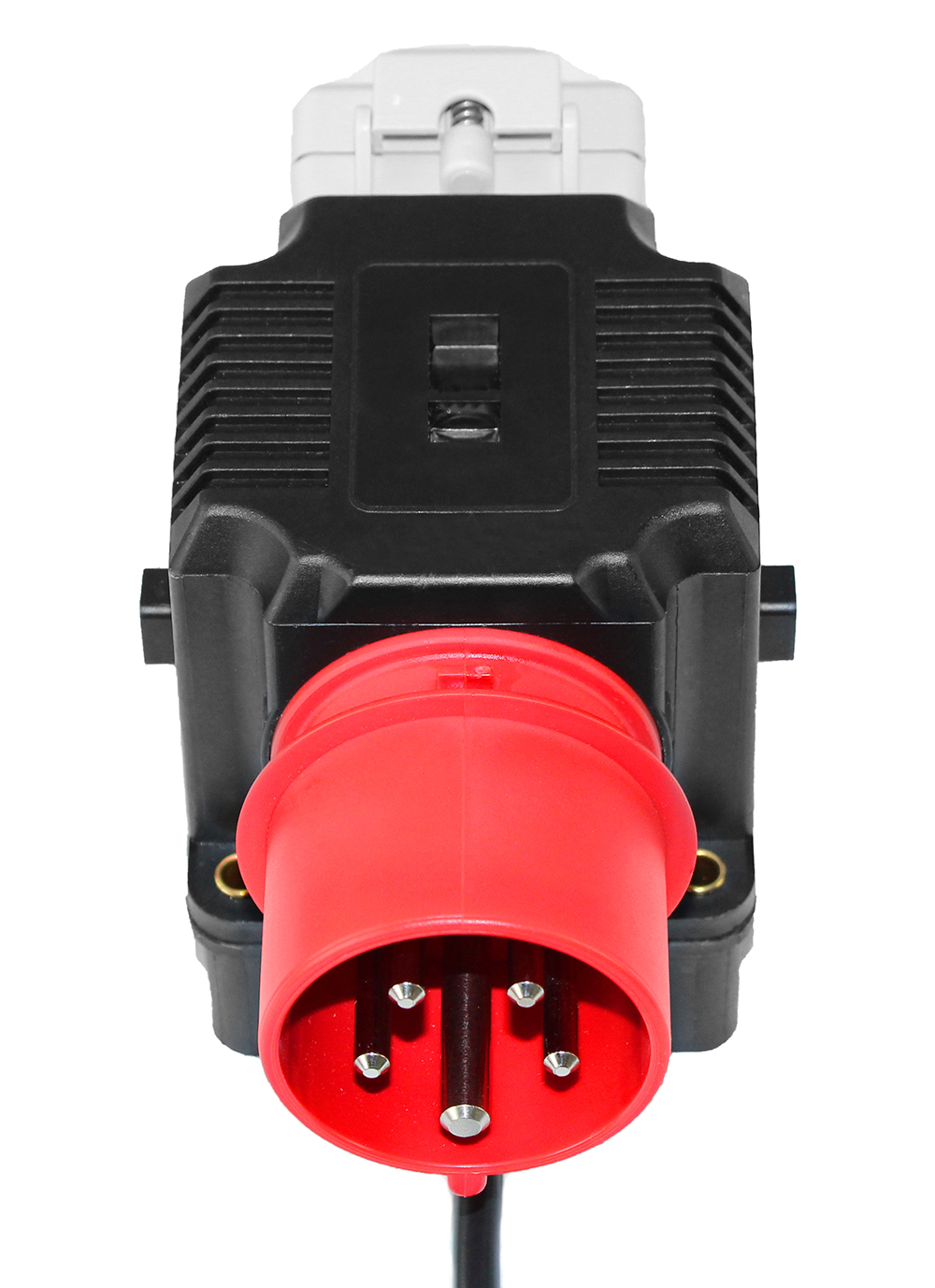

Plug= CEE 16A, 5-pole, 400V
Dimensions=175 x 95 112 mm
Weight= 550g
Attention, no motor protection included!
| Model: | Without braking function - with reversing switch |
|---|---|
| Performance: | 0,12 kW, 0,18 kW, 0,25 kW, 0,37 kW, 0,55 kW, 0,75 kW, 1,1 kW, 1,5 kW, 1,8 kW, 2,2 kW |
| Protective roofs: | Switches and Plugs |
| Tension: | 400 V |
Properties "400V motor switch, left/right rotation, on-off-stop"
| Model: | Without braking function - with reversing switch |
|---|---|
| Performance: | 0,12 kW, 0,18 kW, 0,25 kW, 0,37 kW, 0,55 kW, 0,75 kW, 1,1 kW, 1,5 kW, 1,8 kW, 2,2 kW |
| Protective roofs: | Switches and Plugs |
| Tension: | 400 V |
